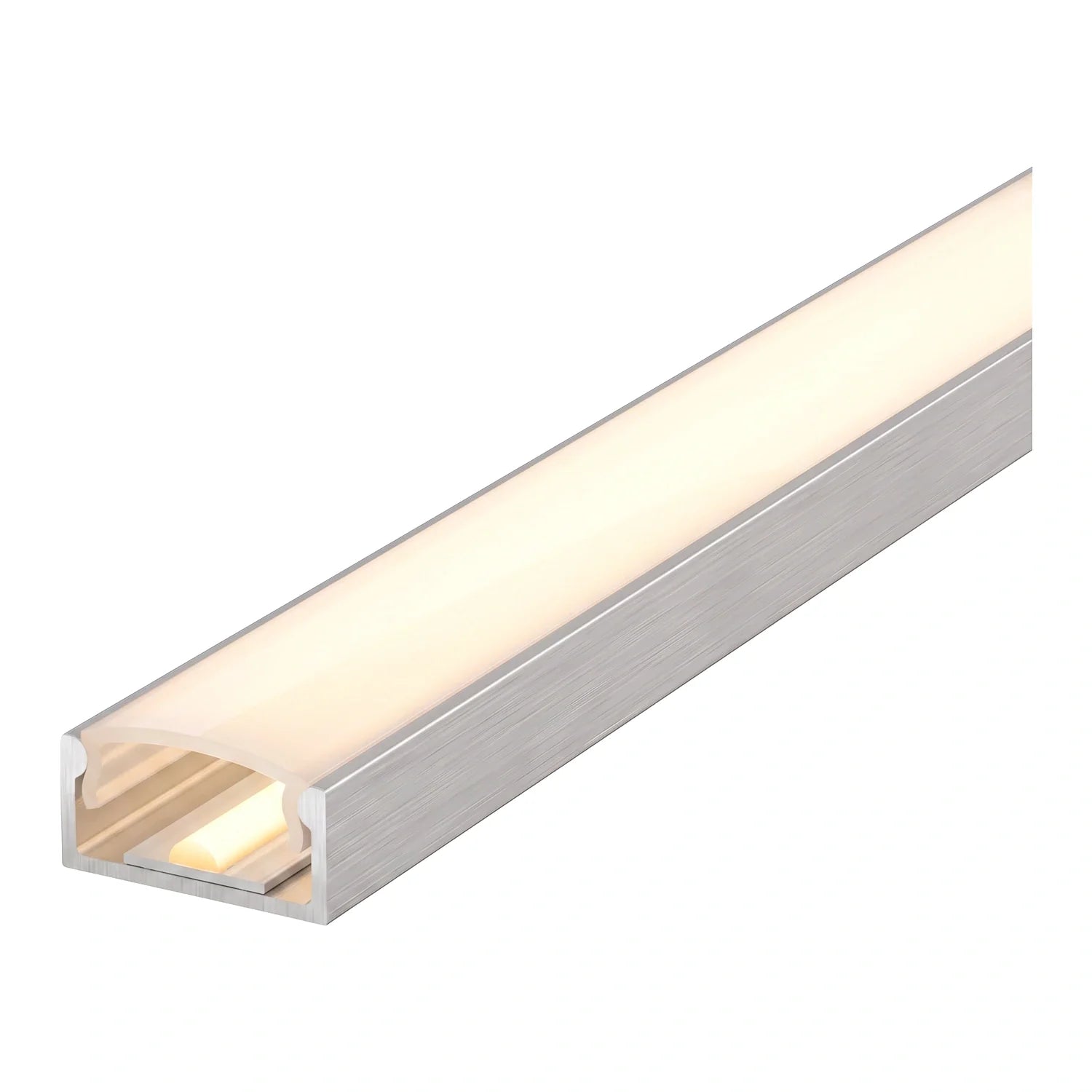

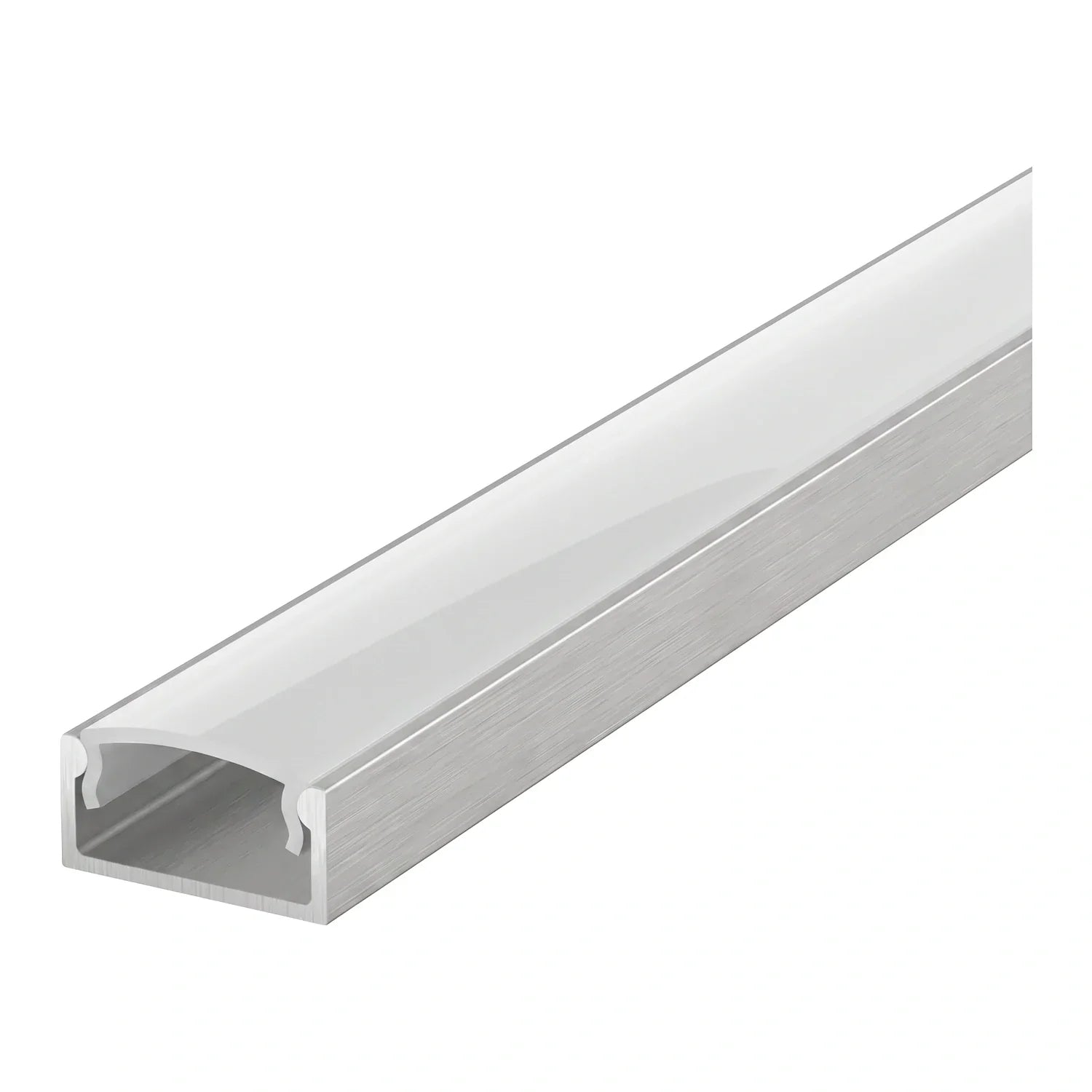

Silver Aluminium LED Surface Profile 17×8mm, Opal Diffuser – 1 & 2 Metre

This slim silver 17 × 8 mm aluminium profile surface-mounts LED strip without a routed recess. It accepts LED tape up to 12 mm wide and includes an opal diffuser. Choose a 1 Metre or 2 Metre length.

Choose your length

• 1 Metre: suited to shorter sections and standard profile delivery.
• 2 Metre: reduces joins on longer runs; long-profile delivery applies.

Where to use it

Use this straight IP20 profile for dry indoor surface mounting beneath cabinets, along shelves, inside wardrobes, on stair details and in architectural joinery. The anodised aluminium protects the tape and helps manage heat, while the opal diffuser softens the visible LED points.

Installation

Screw the supplied mounting clips to a flat surface, install the LED strip inside the channel, then fit the diffuser and end caps. Cut the aluminium and diffuser separately with a suitable fine-tooth blade.

What is included?

Silver aluminium profile in your selected length, opal diffuser, end caps and mounting clips. LED strip, drivers and electrical connections are not included.

Explore all LED strip profiles or compare other surface-mount profiles from House of LEDs.

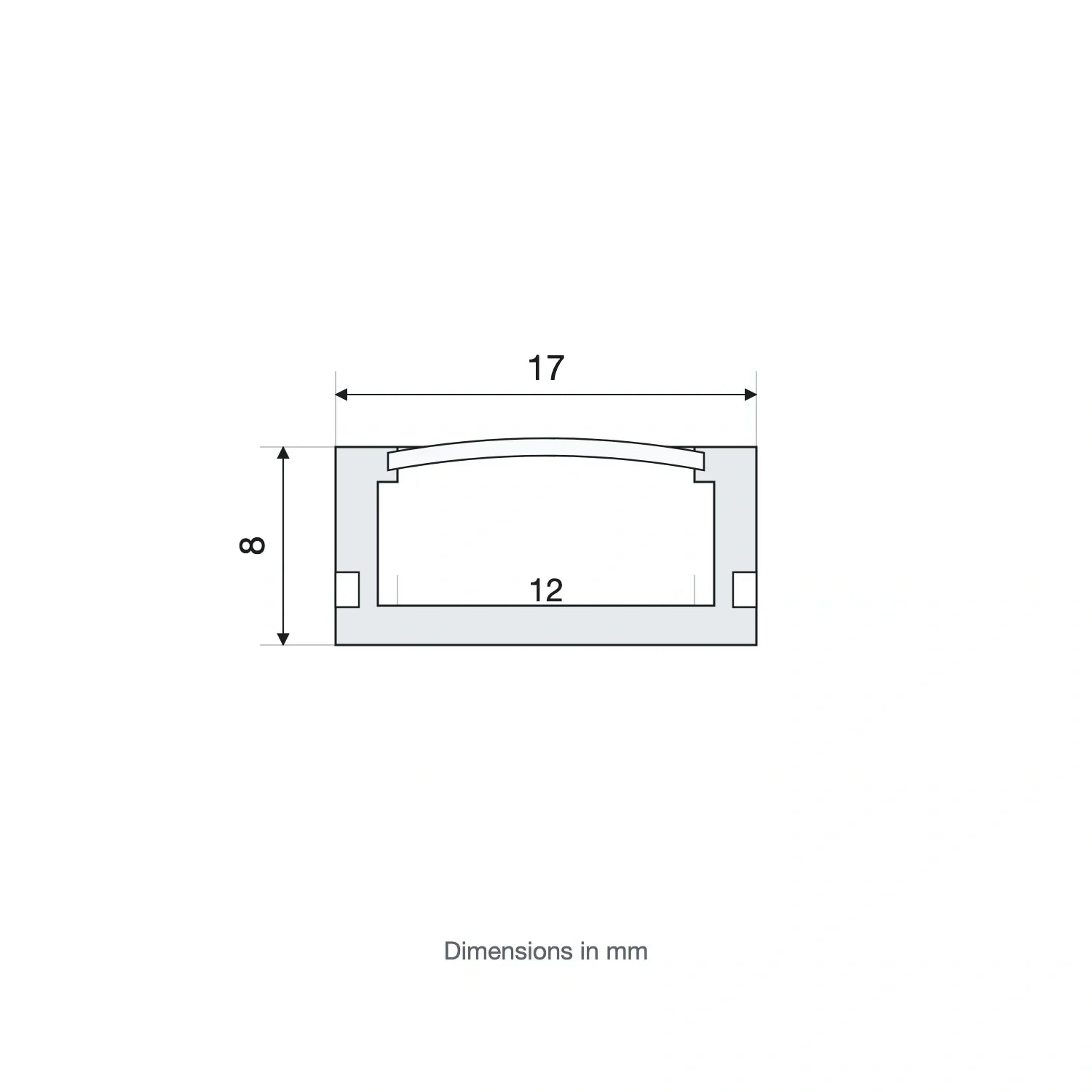

Dimensions
