Bendable Tile-In Aluminium Profile for 10×10mm IP67 Neon Flex

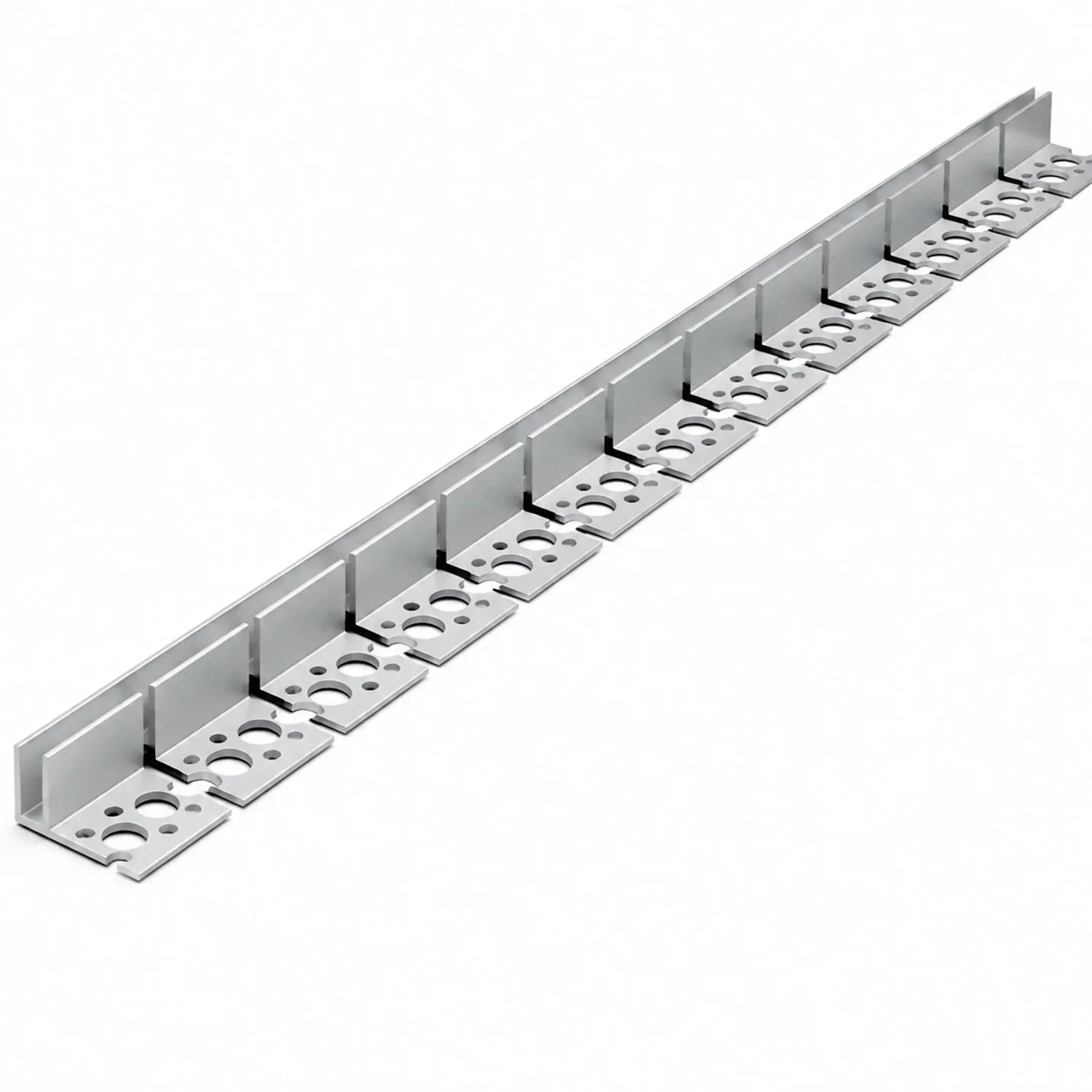

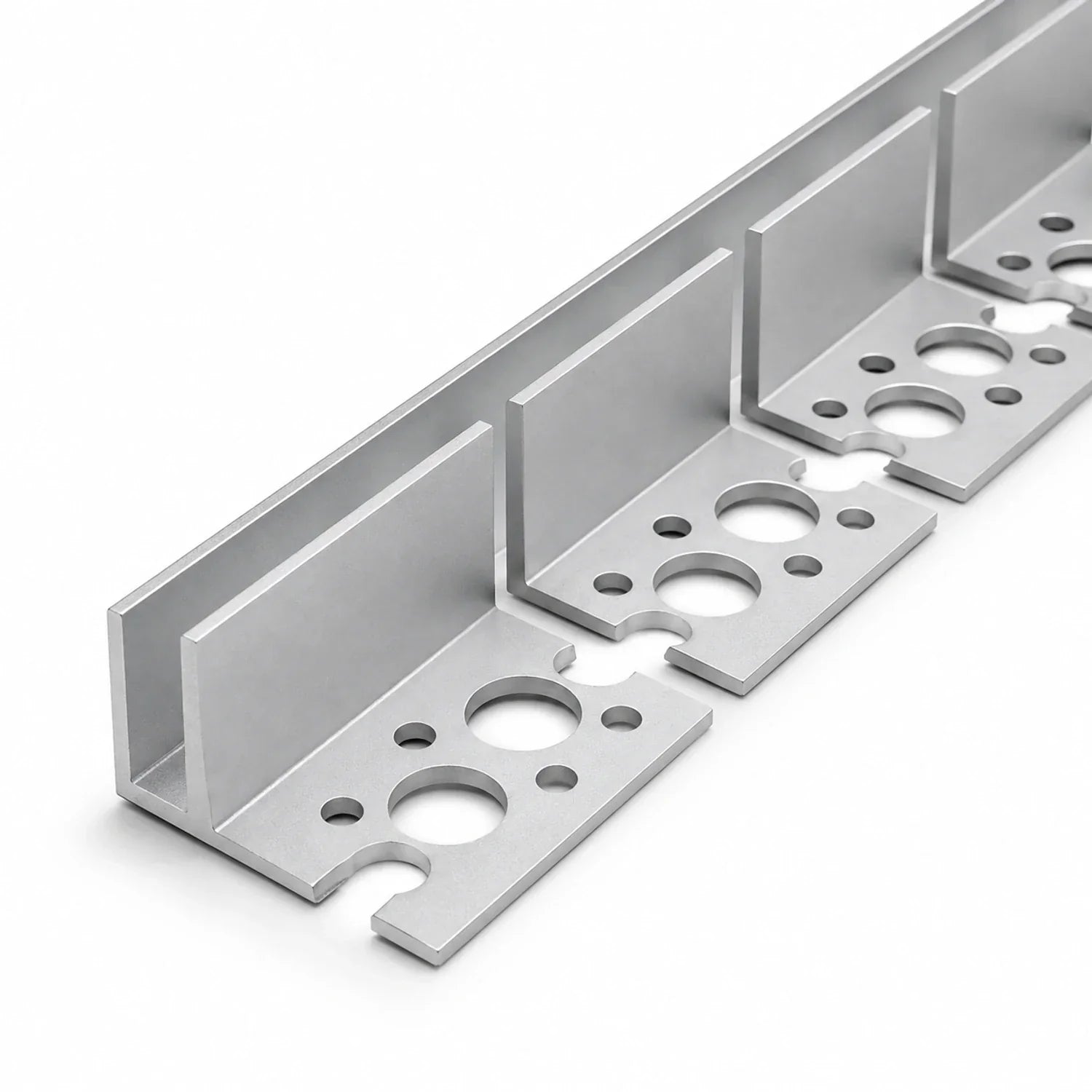

Introduce a compact curved light detail beneath a tiled finish with this bendable profile for 10×10mm Neon Flex. The perforated side flange is divided by relief slots, allowing the aluminium to be formed gradually around a designed route before the surface is completed.
Check the fit at full scale

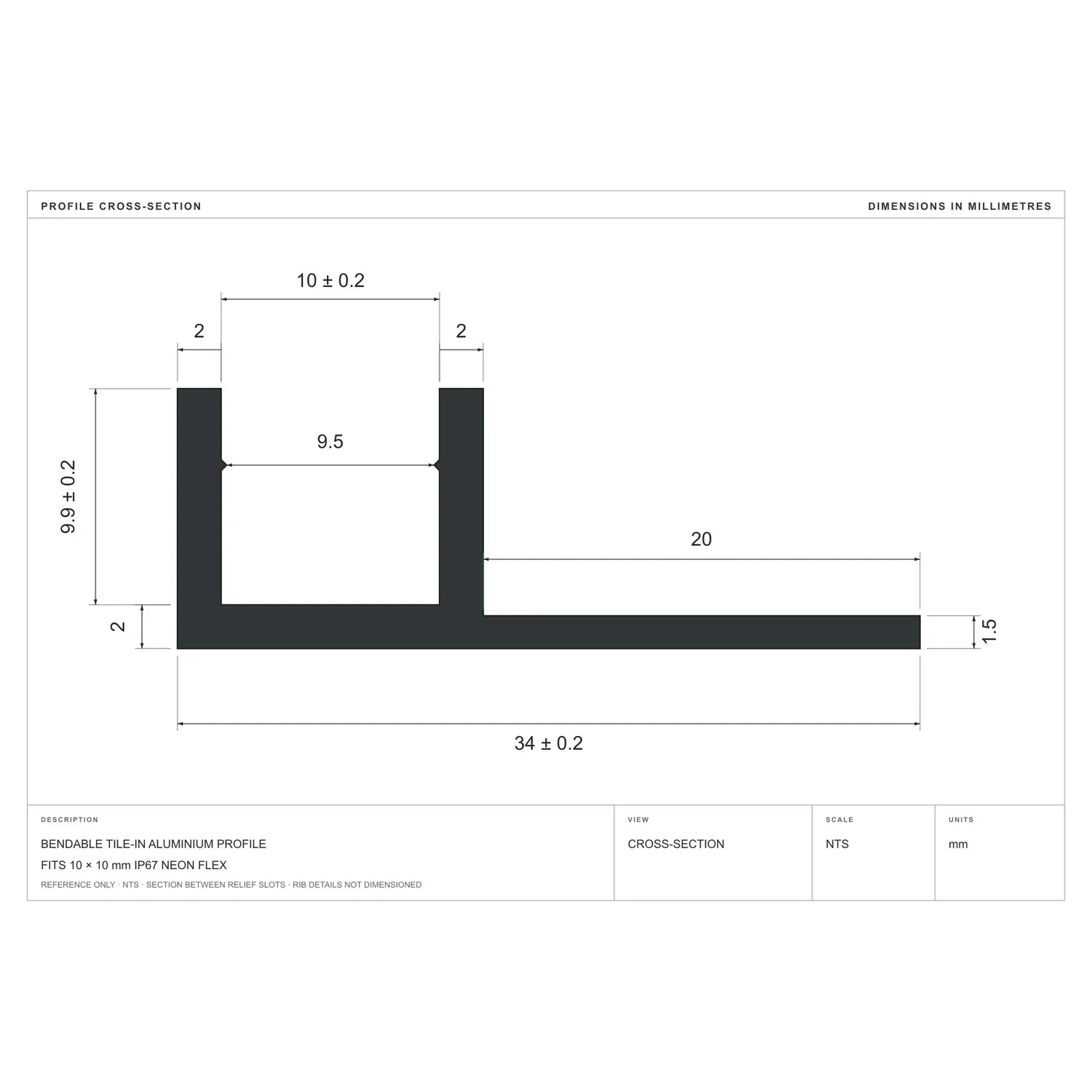

The profile is 34mm wide within a ±0.2mm tolerance. Its nominal cavity is 10mm, with a 9.5mm clear mouth and 9.9mm internal depth. Those tolerances matter, so compare the drawing with the chosen 24V or 48V IP67 Neon Flex and test a sample before installation.
Choose a 1-metre or 2-metre length. Avoid kinks, allow for drainage and accessible joints, and follow the bending limits of the light itself.
Profile only: no Neon Flex, diffuser, fixings, driver or controls are supplied. IP67 is the compatibility class of the matching light, not a rating for the aluminium. Warranty: 7 years.
- Brand
- ATOM LED
- Product type
- Aluminium Profile
- Reel length
- 1 Metre / 2 Metres
- Dimensions
- 34 ± 0.2 mm wide; 9.9 ± 0.2 mm internal depth
- Width
- 34 ± 0.2 mm
- Shape
- Bendable asymmetric tile-in channel
- Material
- Aluminium
- Warranty
- 7 Years
- Attachment / mounting
- Tile-in / recessed beneath tiled finish
