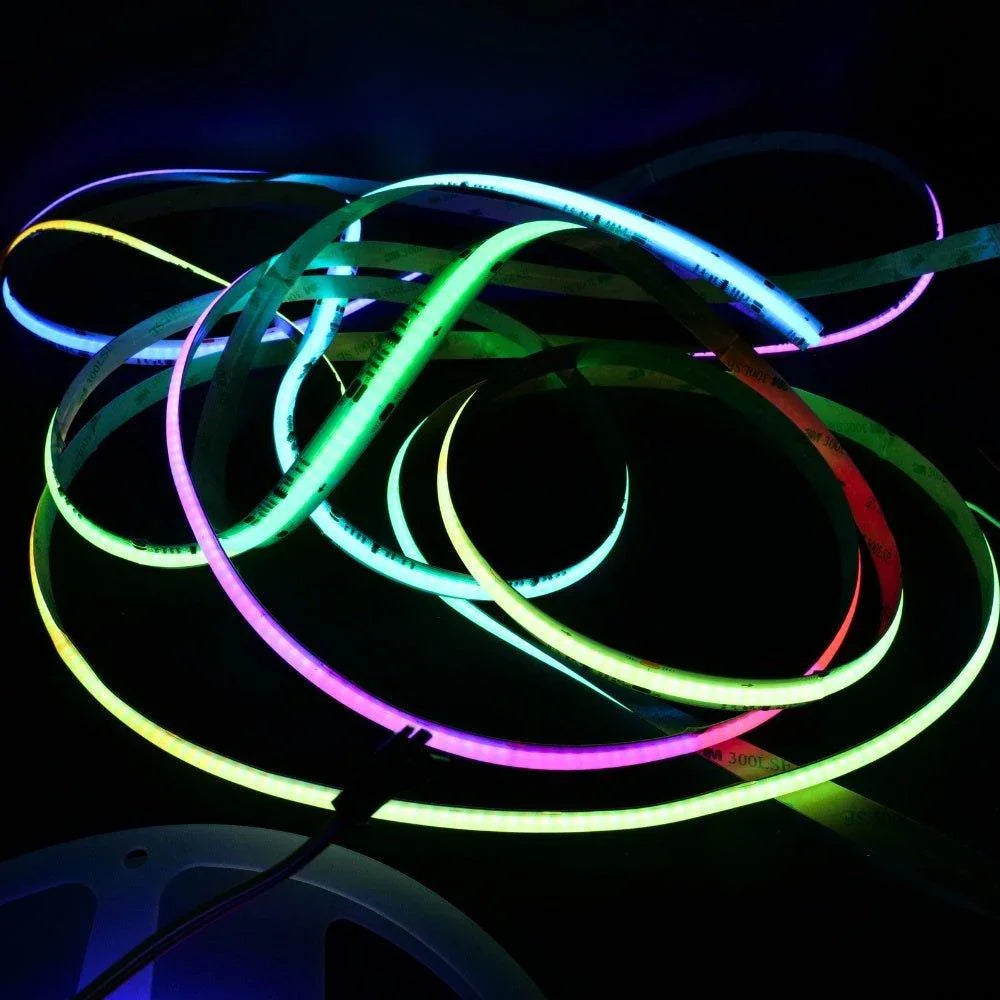

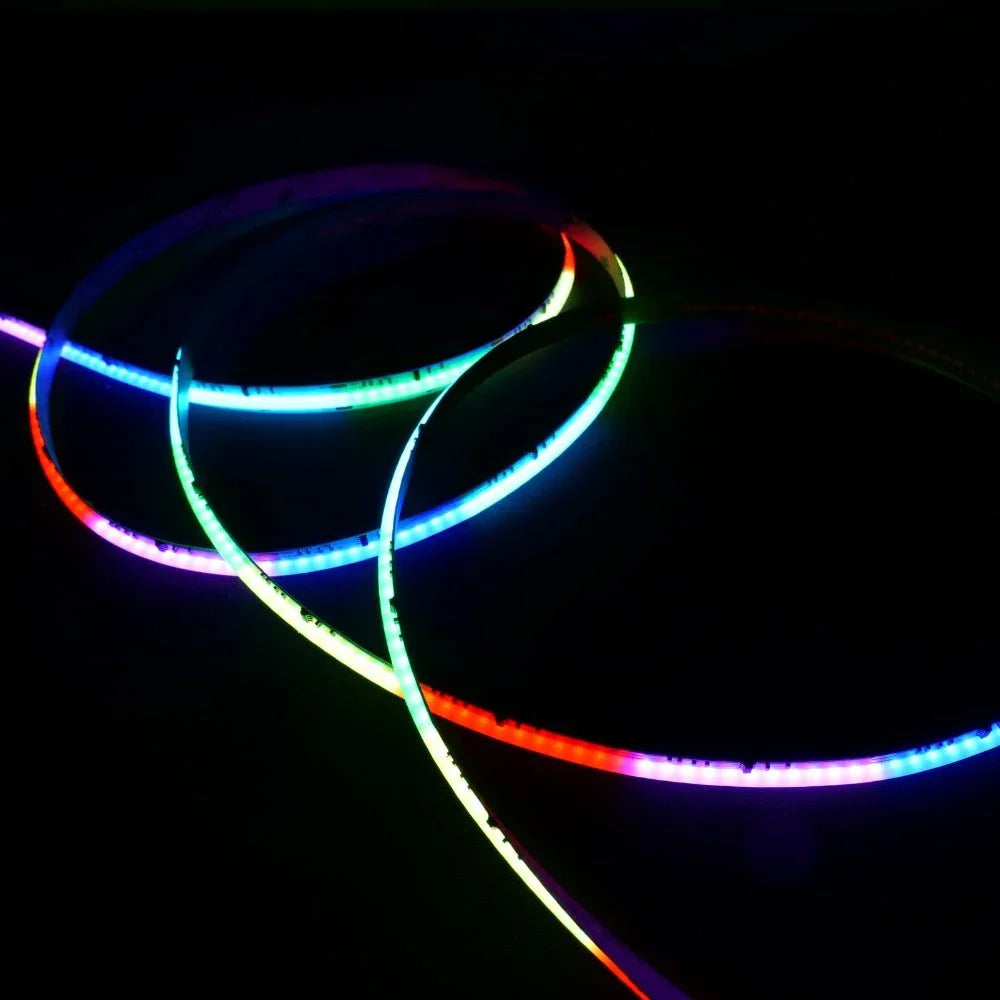

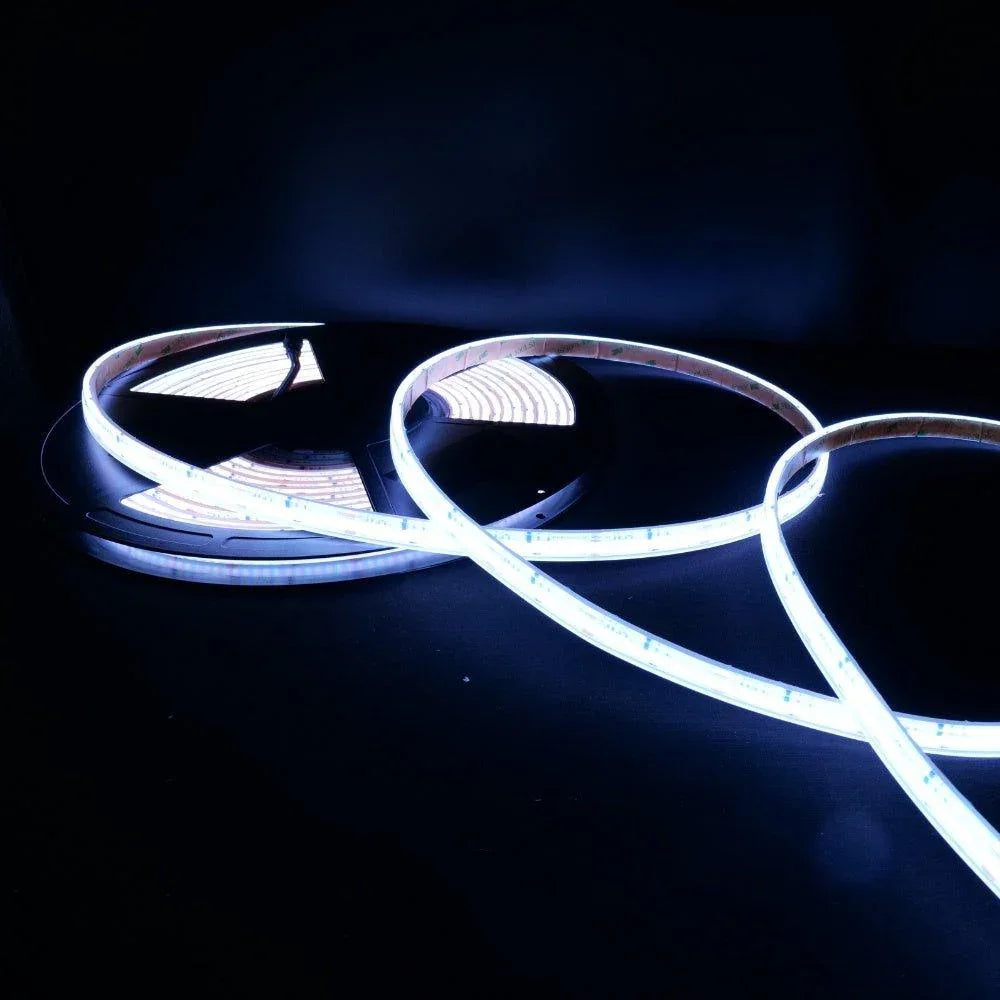

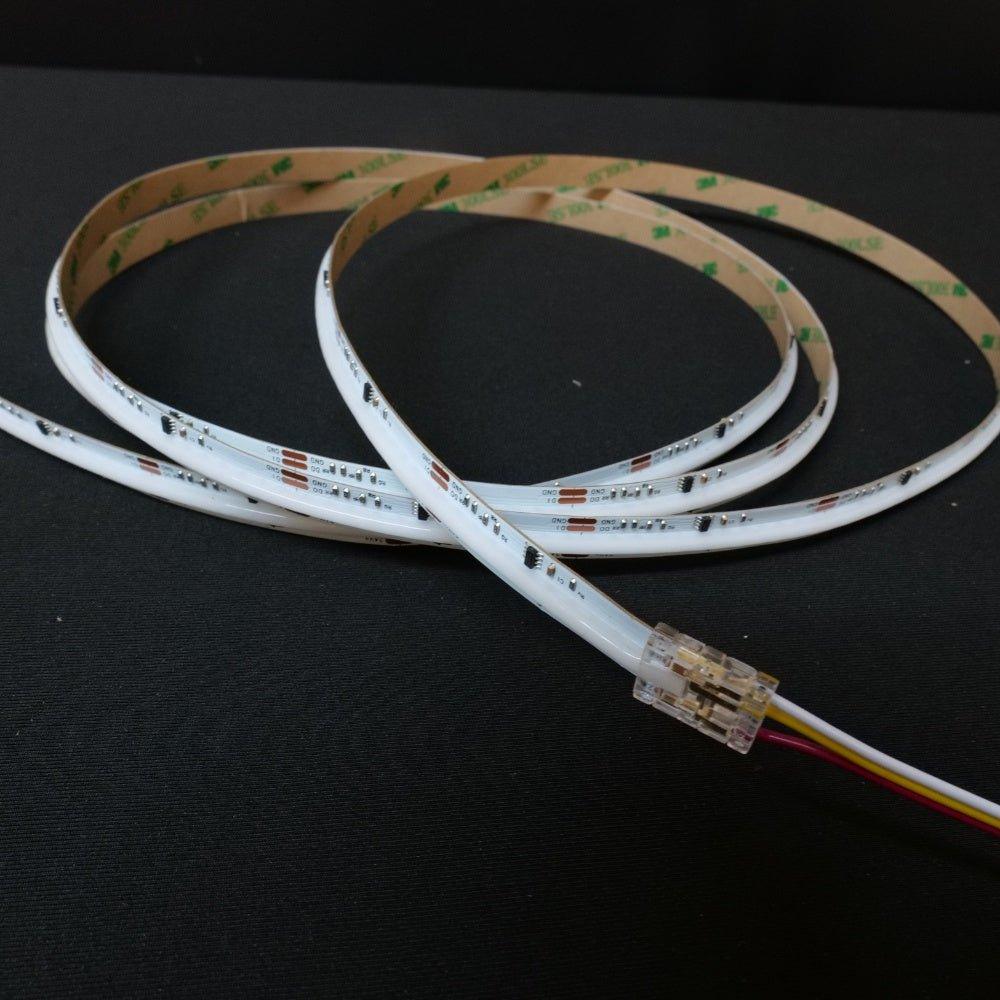

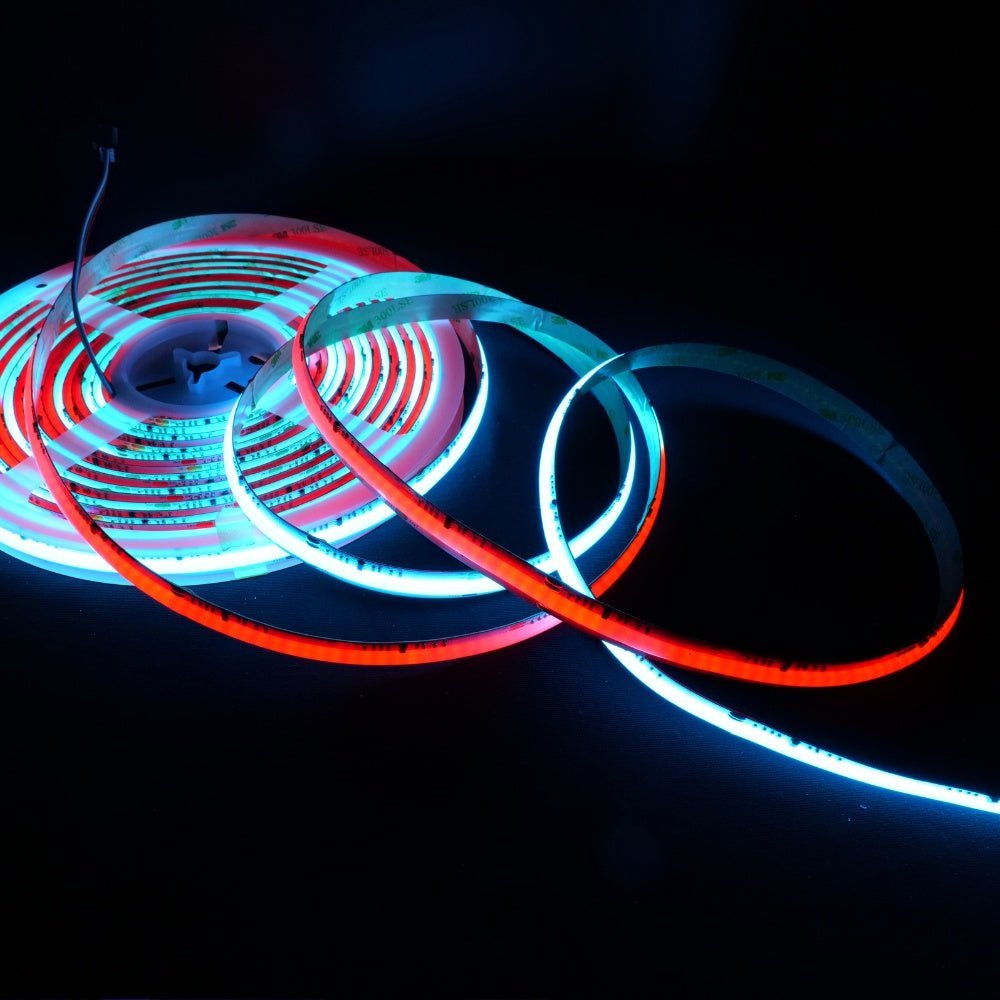

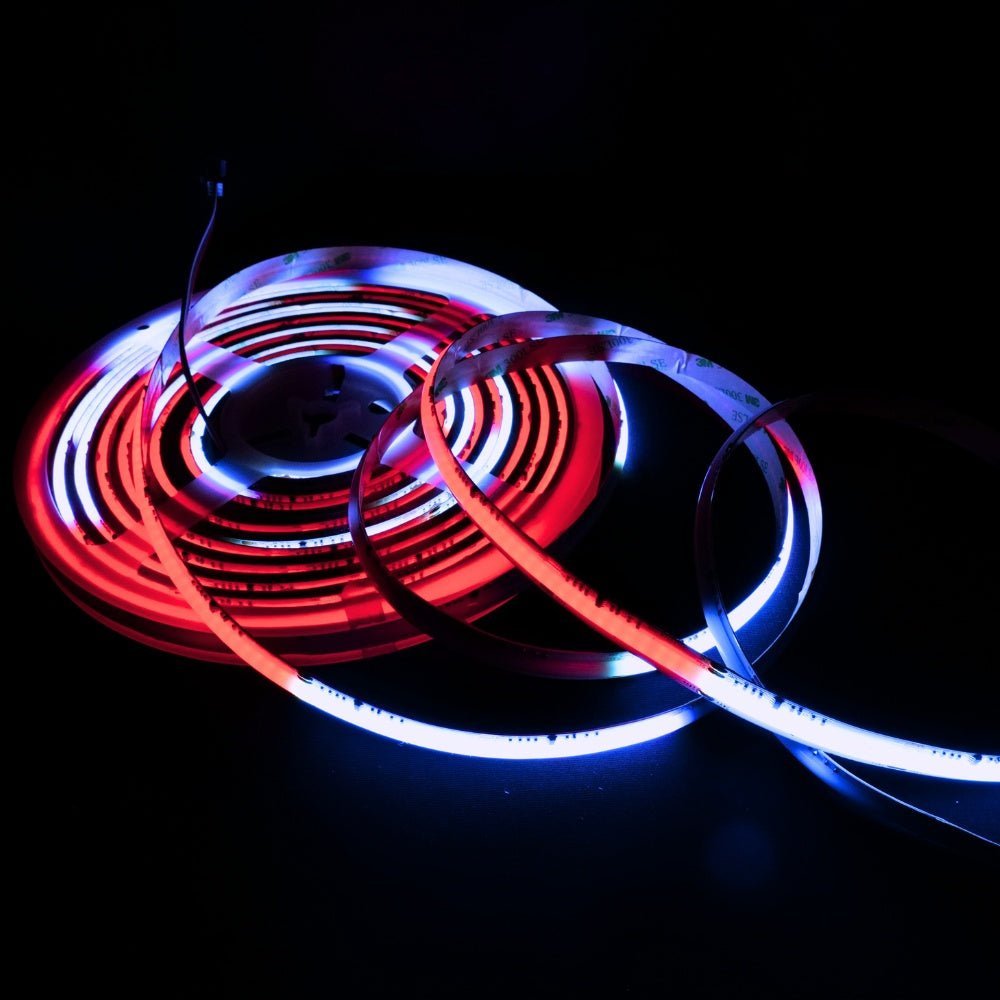

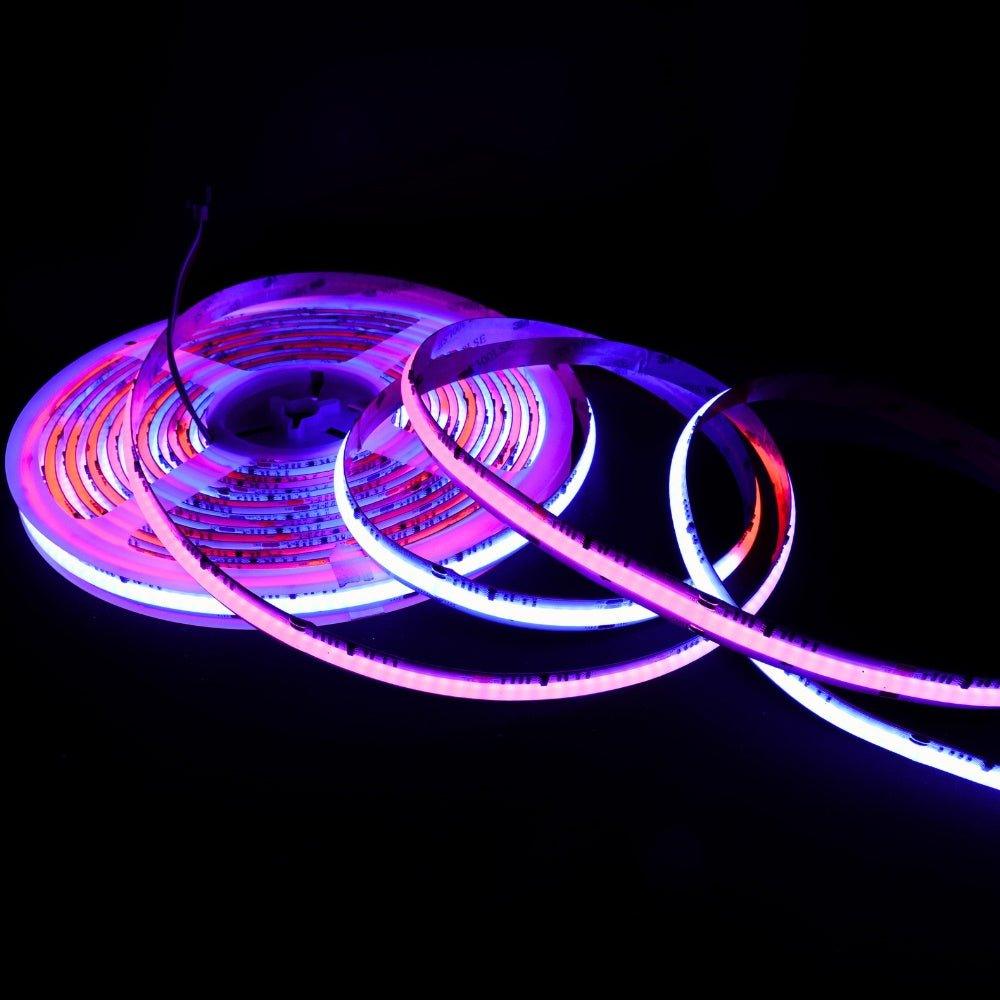

Digital Pixel RGBW (3000K) COB Strip 24V IP20 784 LEDs/m WS2814 10mm wide

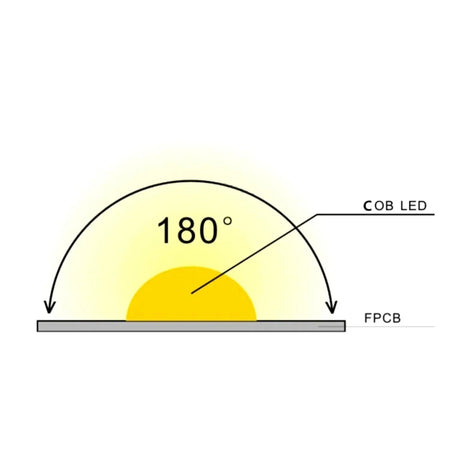

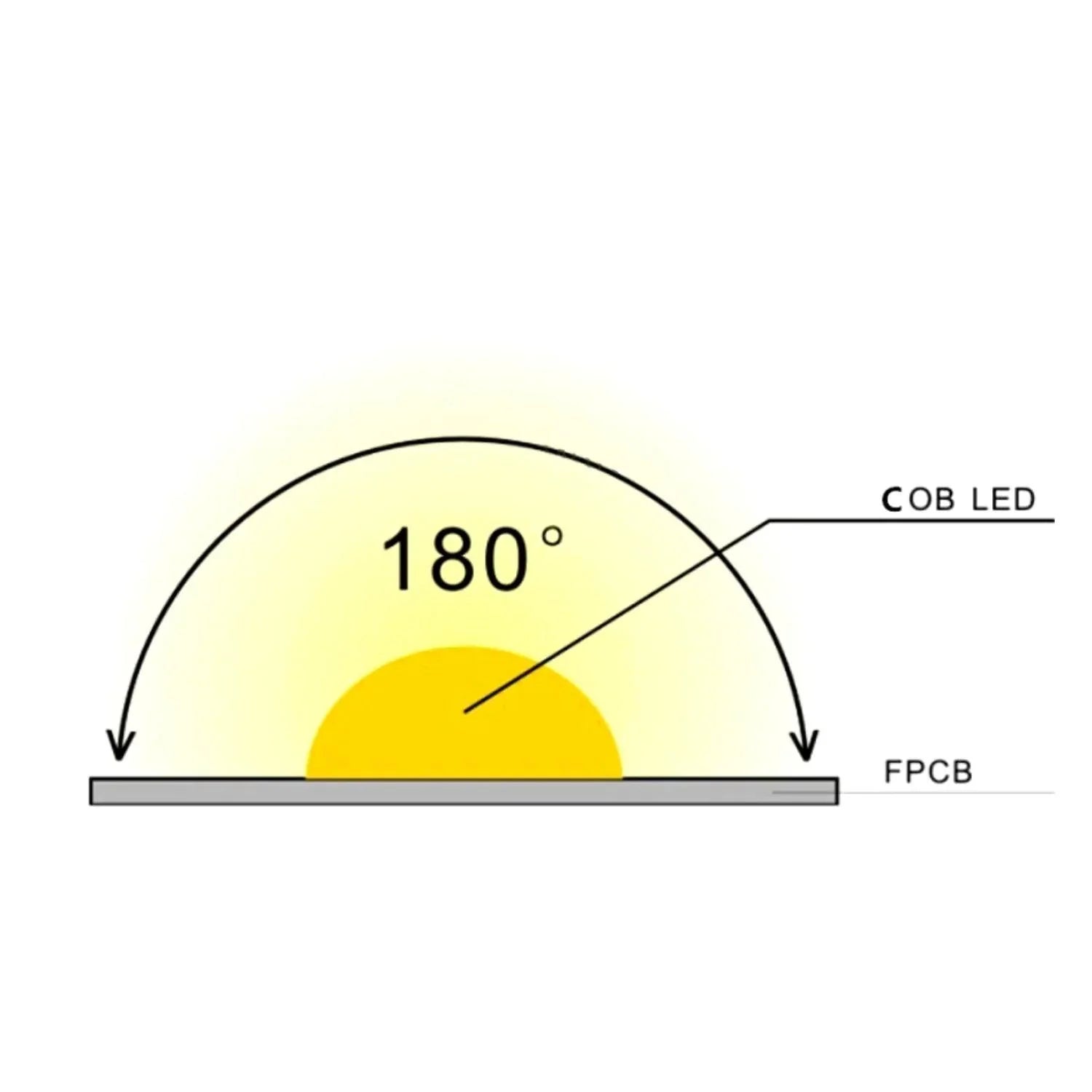

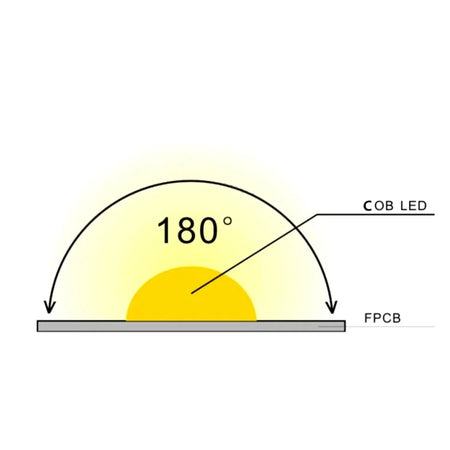

Digital Pixel RGBW (3000K) COB Strip 24V IP20 784 LEDs/m WS2814 10mm wide is a 24V DC COB (Chip on Board) LED strip designed to produce a continuous, dotless line of light. It emits RGBW / 3000K light. Its IP20 rating is suited to dry indoor lighting such as coving, cabinetry and joinery. It can be cut every 7.139999999999999cm. Addressable effects require a compatible WS2814 controller.
- Voltage: 24V DC
- Colour: RGBW / 3000K
- IP rating: IP20
- Width: 10mm
- LED density: 784 LEDs/m
- Pixel density: 14 pixels/m
- Cut interval: 7.139999999999999cm
- Power: 21W/m

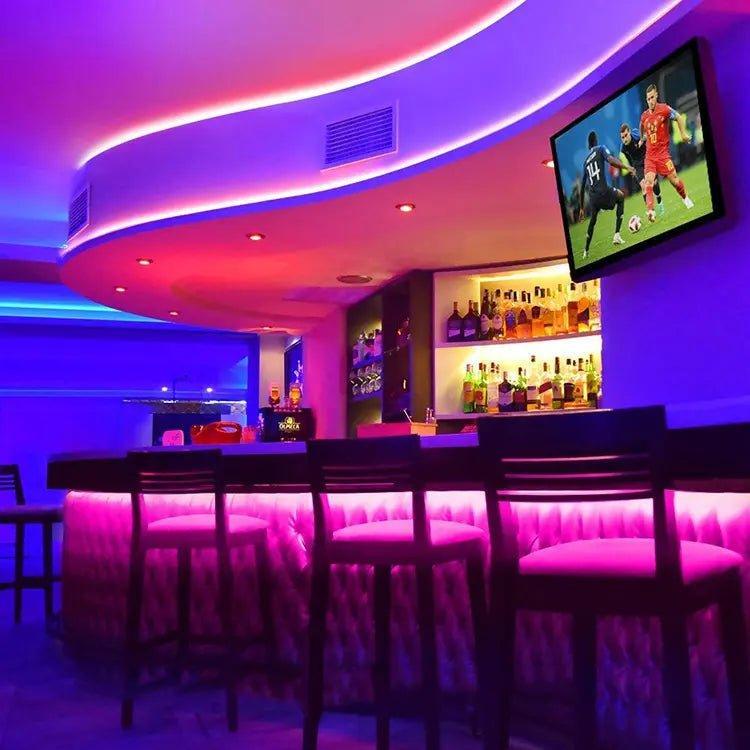

Best for: This addressable COB LED strip is suited to animated signage, hospitality features, event sets and pixel-controlled architectural lines. Avoid if: the route is exposed to moisture or outdoor weather; choose an appropriately rated product instead.
Installation planning: Match the system to a 24V DC constant-voltage LED driver. Use an addressable controller matched to WS2814; a standard RGB controller will not create pixel effects. For a cut-to-length installation, cut only at the stated 7.139999999999999cm interval. Calculate driver load from 21W/m and the ordered length, then allow suitable capacity headroom.
Browse IP20 COB LED strip or compare the full COB LED strip range.
- Brand
- House of LEDs
- Product type
- COB LED strip
- Colour
- RGBW / 3000K
- IP rating
- IP20
- LEDs per metre
- 784 LEDs/m
- Pixels per metre
- 14 pixels/m
- Voltage
- 24V DC
- Watts per metre
- 21W/m
- Width
- 10mm
- Lumens per metre
- 830 lm/m
- Cut interval
- 7.139999999999999cm
- Operating temperature
- -20 - 45 degree
- LED type
- COB (Chip on Board)
- Shape
- Flexible strip
