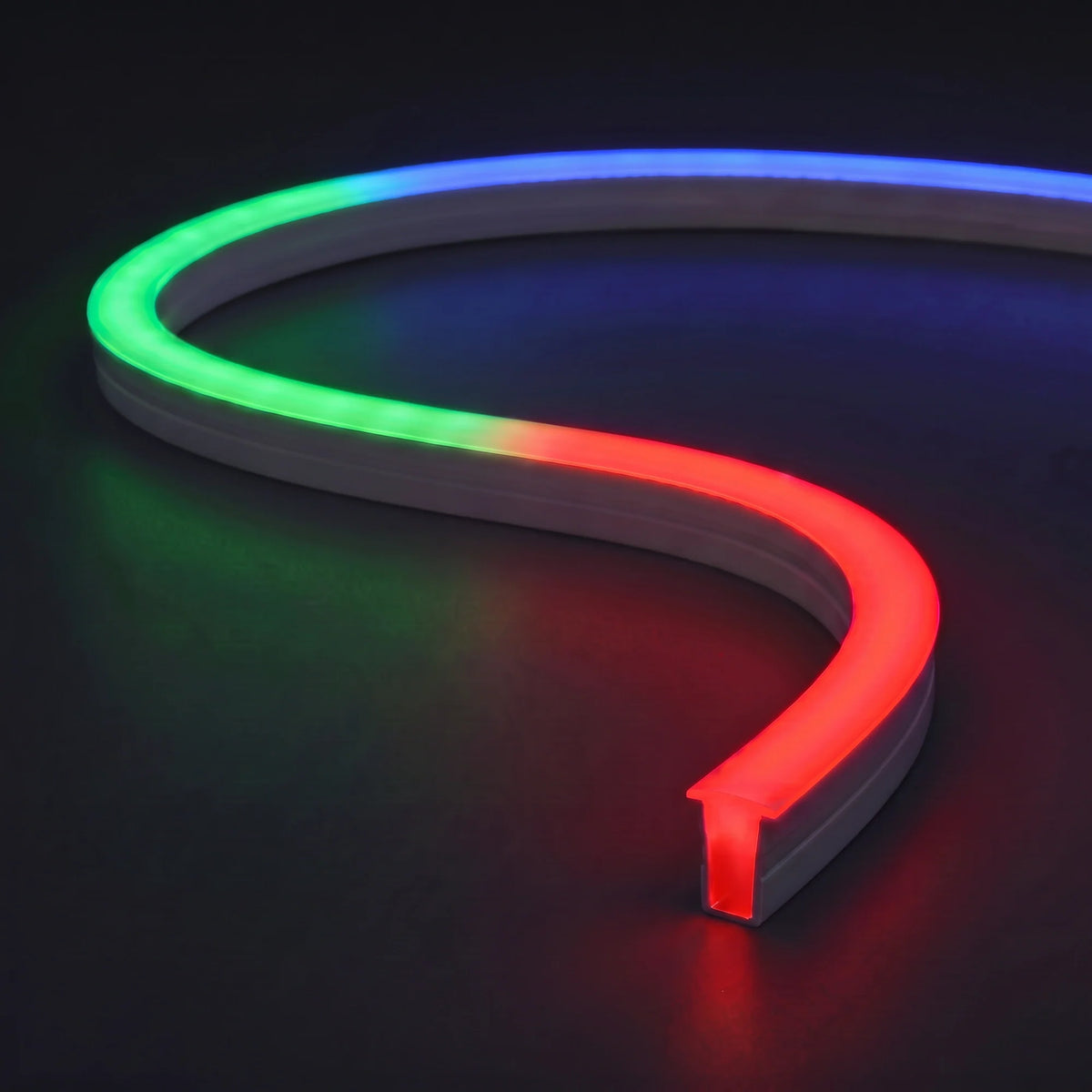

RGB silicone neon flex with a T-shaped diffuser and red, green and blue light on a dark charcoal surface
RGB neon flex with solid red illumination and matching glow on a dark charcoal surface
RGB neon flex with solid green illumination and matching glow on a dark charcoal surface
RGB neon flex with solid blue illumination and matching glow on a dark charcoal surface
RGB neon flex showing an icy cool white RGB mix with a blue tint and matching glow on a dark charcoal surface

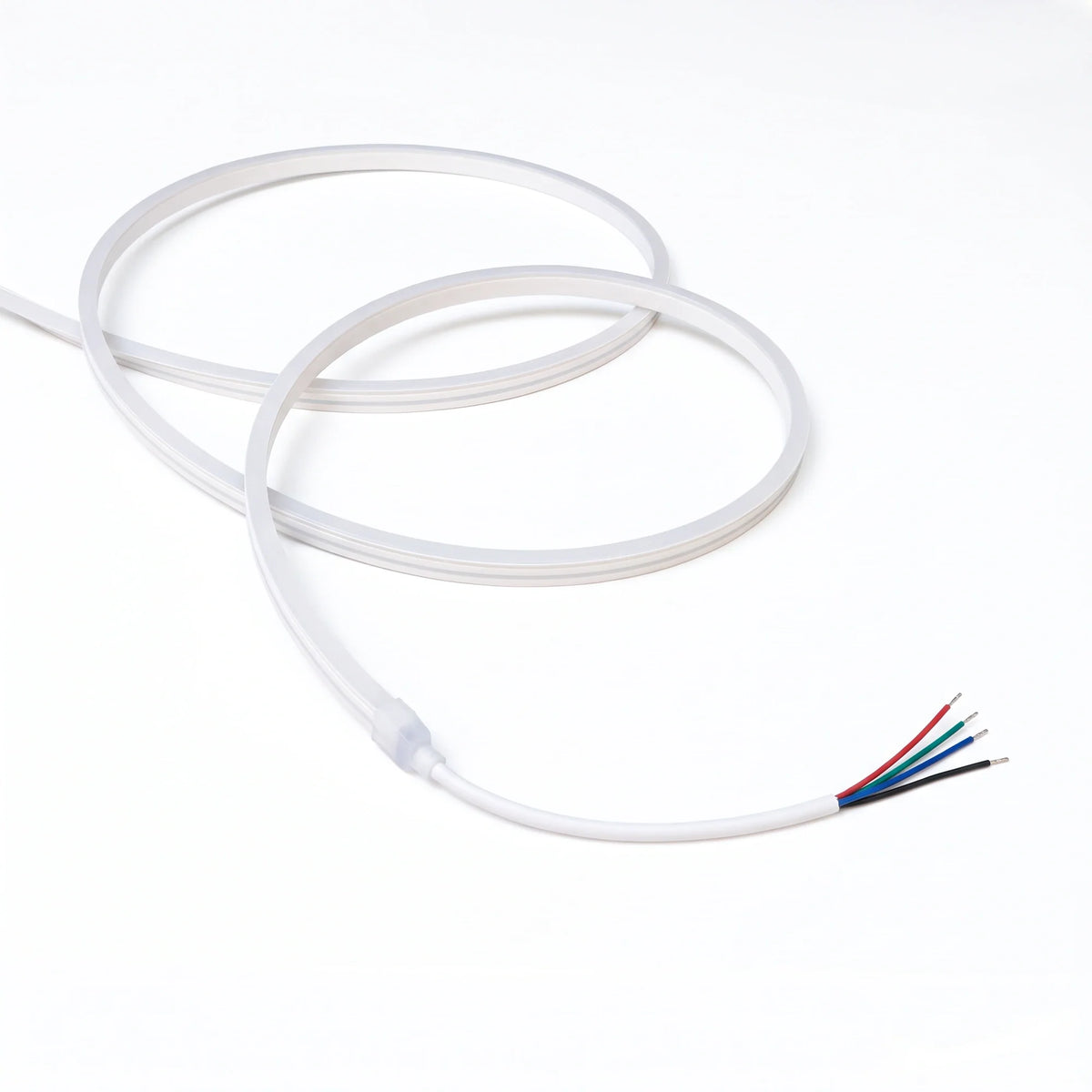

Unlit white RGB silicone neon flex coil with four-core power cable

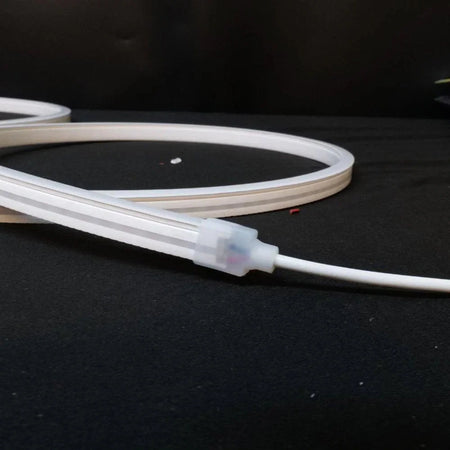

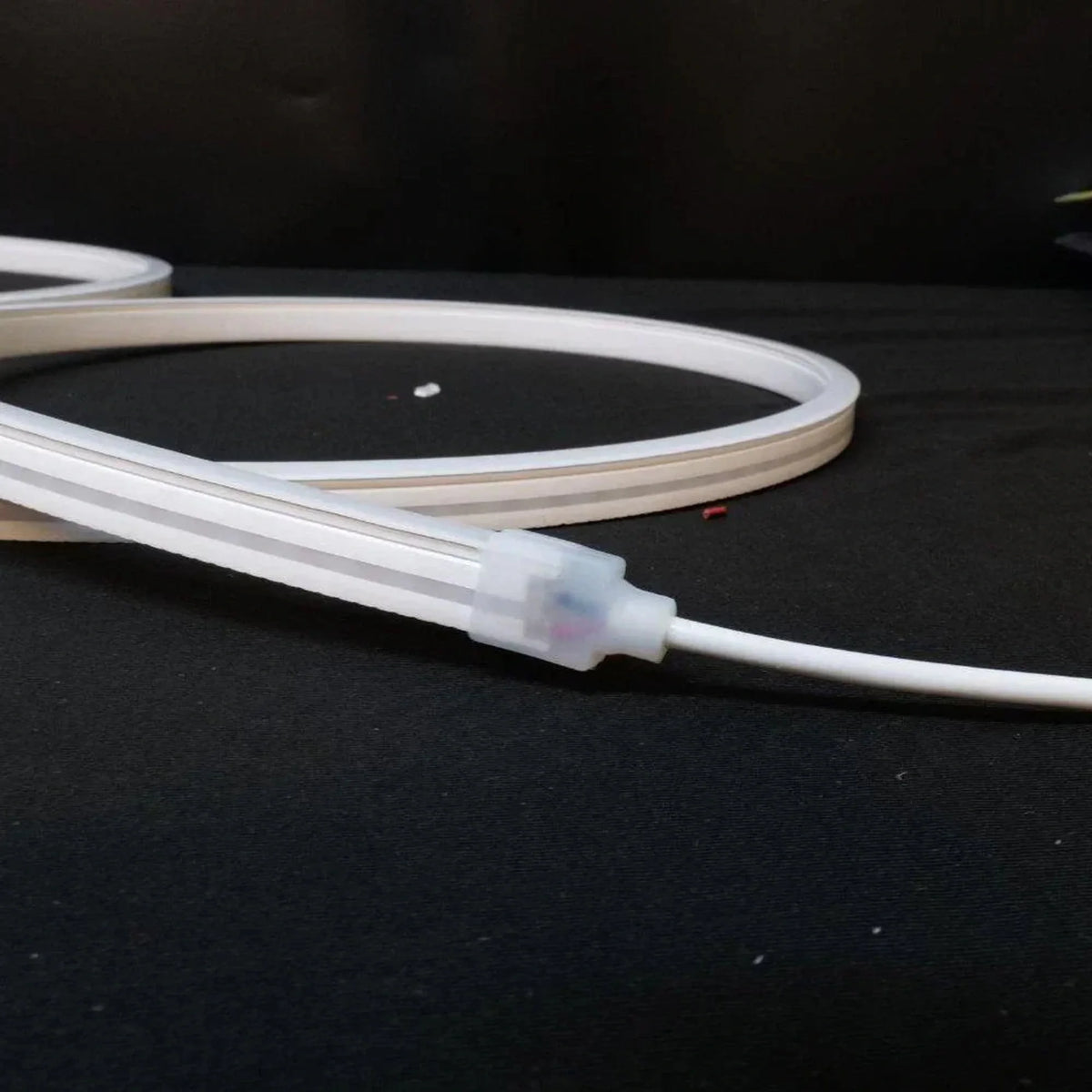

Close-up of the silicone connector and white cable on unlit neon flex

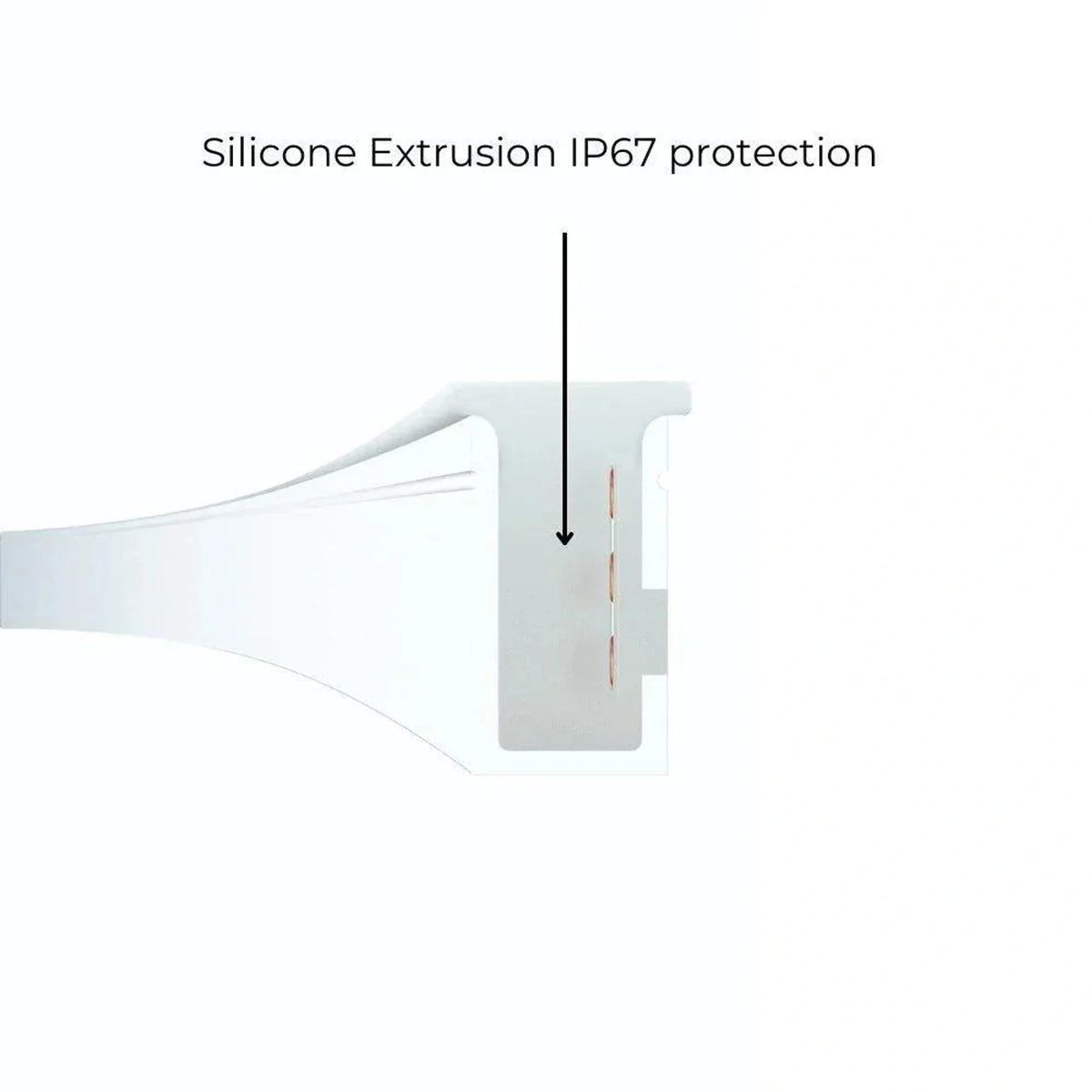

Solid silicone extrusion and IP67 protection of the neon flex body

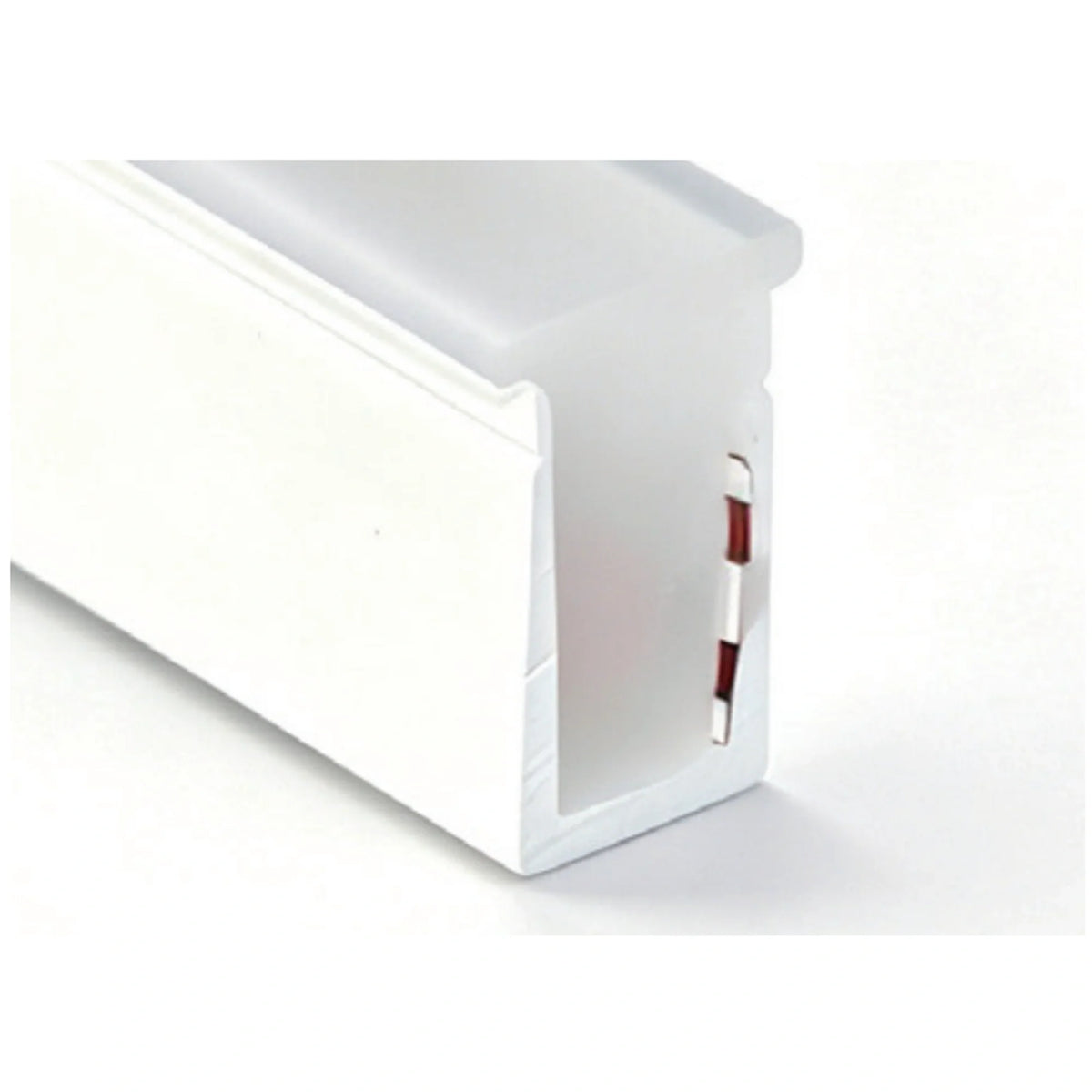

8x16mm neon flex solid silicone cross-section with the outer silicone layer and wider diffuser

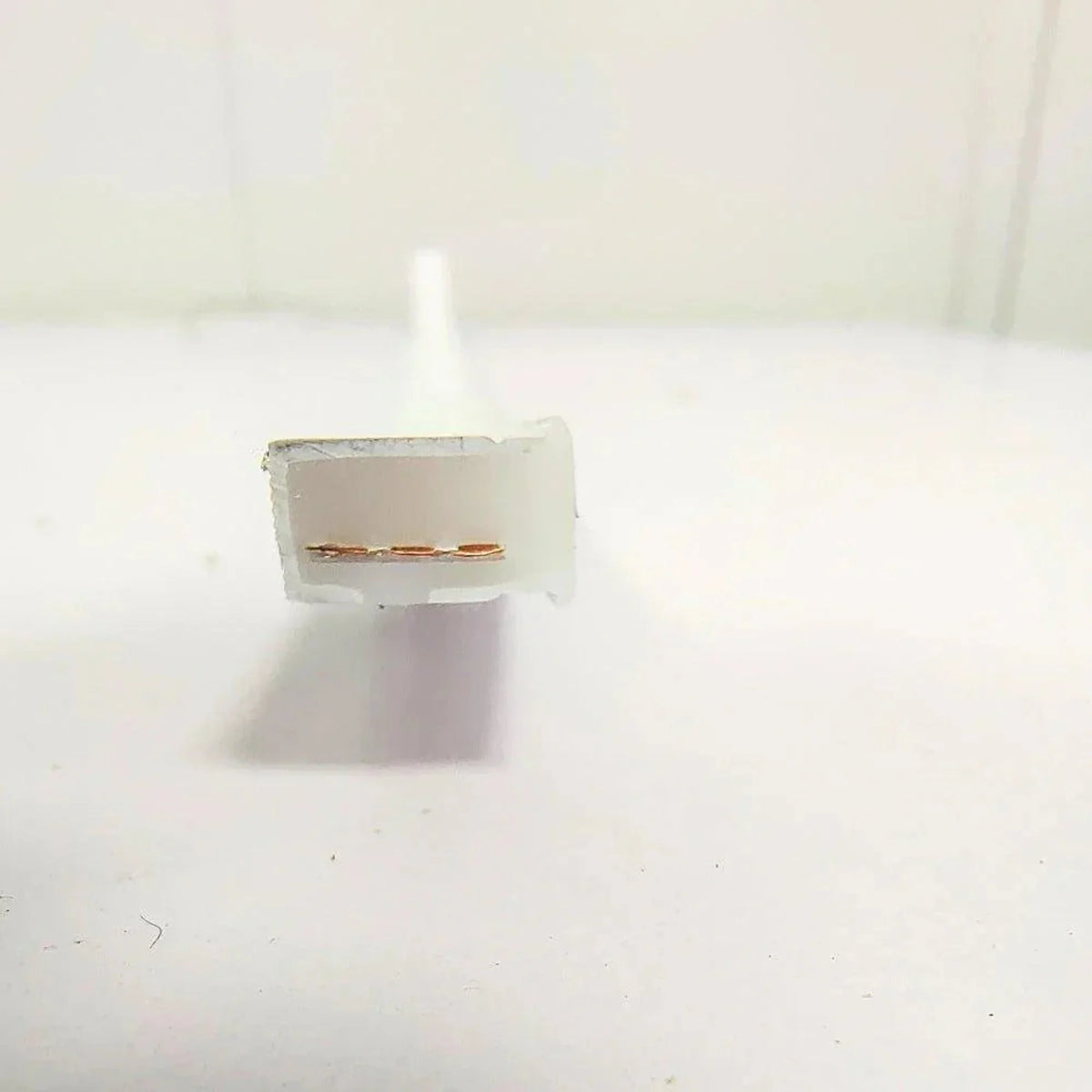

Unlit neon flex end-face showing the solid silicone housing

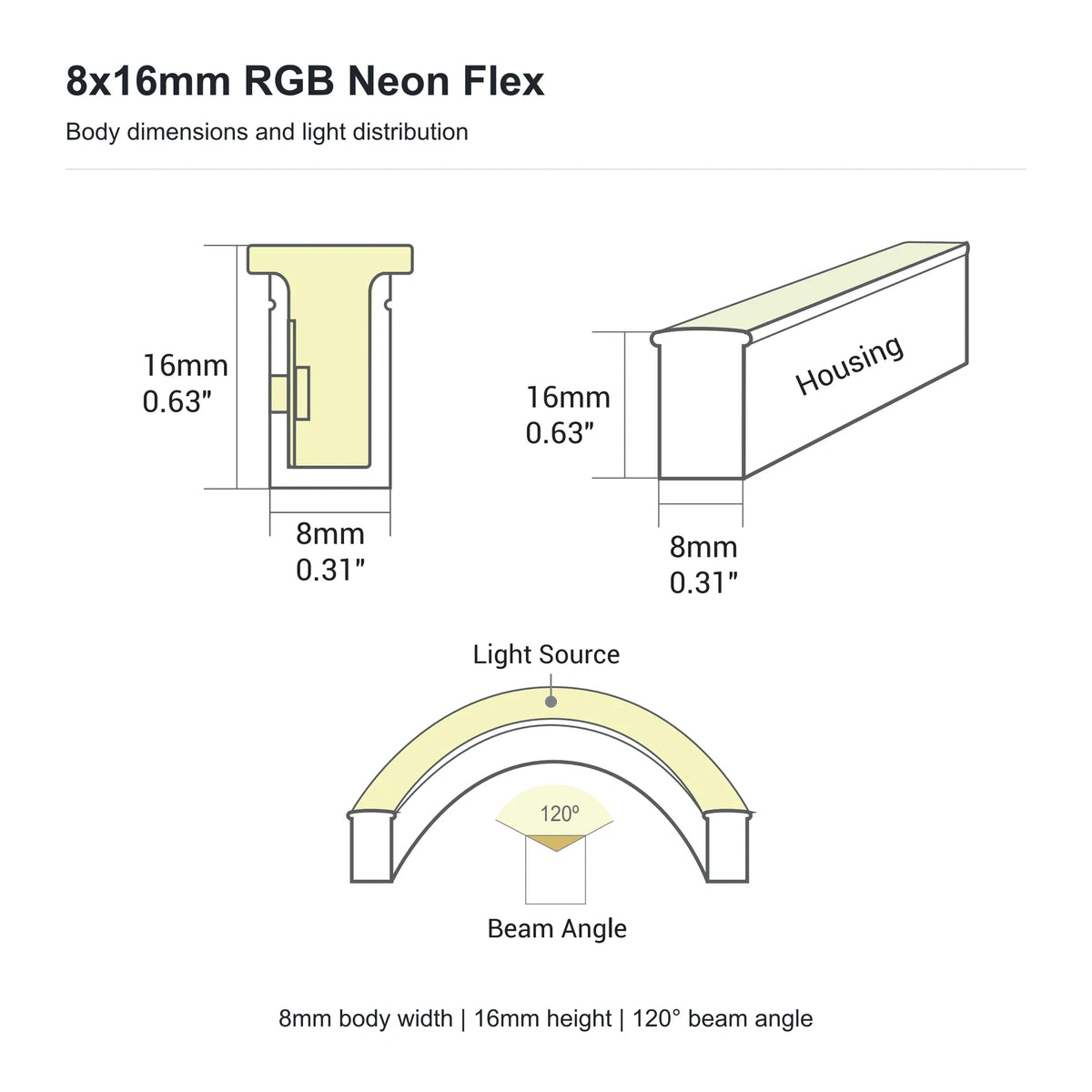

8x16mm RGB neon flex cross-section, housing dimensions and 120 degree beam angle

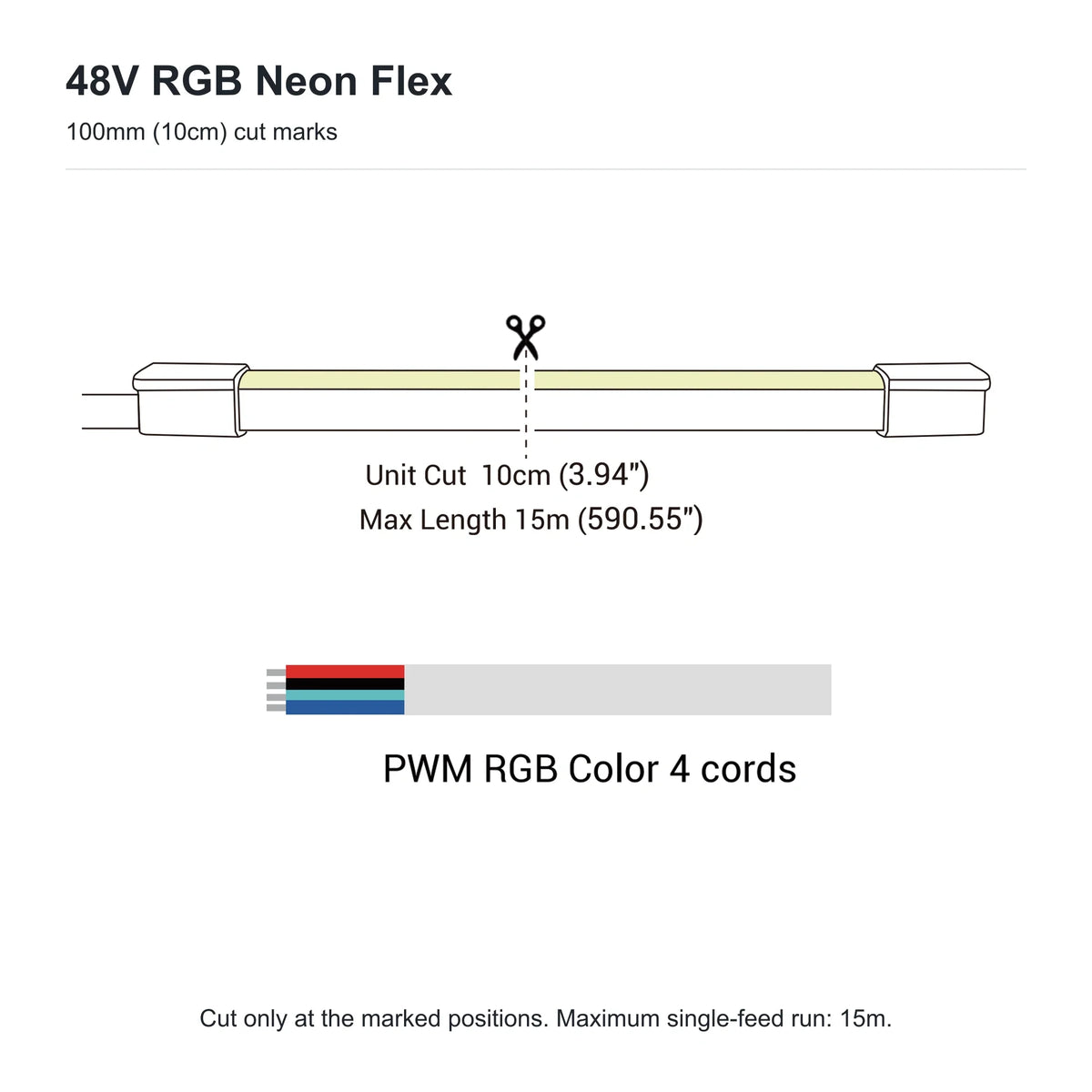

48V RGB neon flex cutting diagram: 100mm (10cm) cut intervals, 15m maximum single-feed run and four-core PWM RGB connection

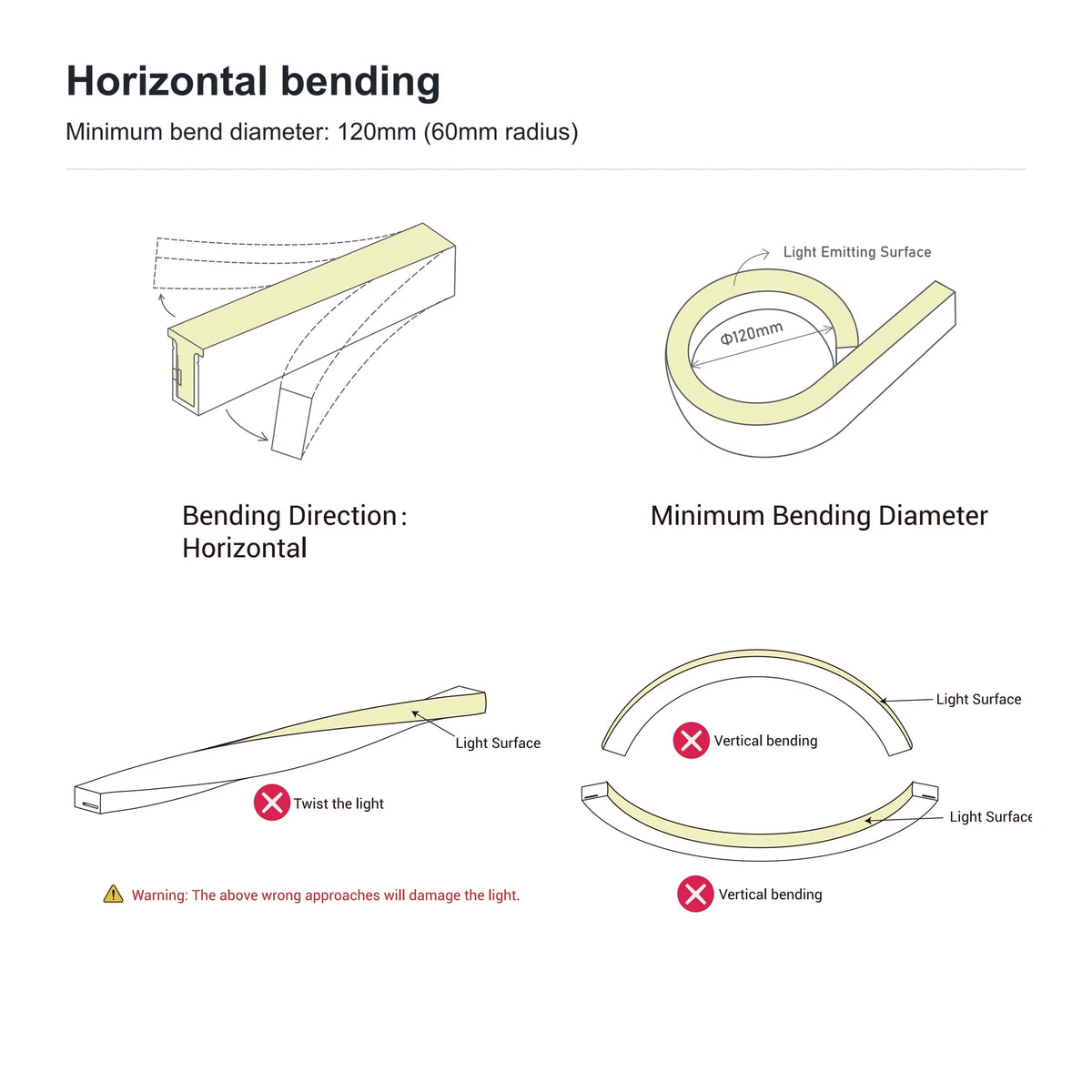

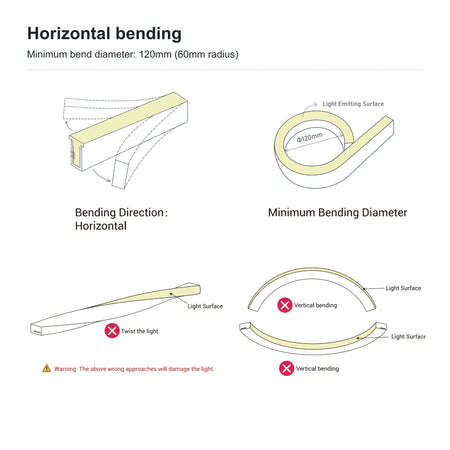

Horizontal bending direction with a 120mm minimum bending diameter; do not twist or bend vertically
Blue RGB neon flex recessed beneath outdoor sandstone steps in a UK cottage garden
Soft pale-yellow RGB mixed light beneath every stepped driveway wall coping
Green RGB neon flex curving horizontally beneath a garden planter coping and shining down
Blue RGB neon flex recessed beneath the roof beams of a covered UK patio
Purple RGB neon flex recessed beneath a roofed cedar garden seating structure
Icy blue-white RGB mixed light recessed underneath an outdoor timber bench
RGB silicone neon flex with a T-shaped diffuser and red, green and blue light on a dark charcoal surface
RGB neon flex with solid red illumination and matching glow on a dark charcoal surface
RGB neon flex with solid green illumination and matching glow on a dark charcoal surface
RGB neon flex with solid blue illumination and matching glow on a dark charcoal surface
RGB neon flex showing an icy cool white RGB mix with a blue tint and matching glow on a dark charcoal surface
Unlit white RGB silicone neon flex coil with four-core power cable
Close-up of the silicone connector and white cable on unlit neon flex
Solid silicone extrusion and IP67 protection of the neon flex body
8x16mm neon flex solid silicone cross-section with the outer silicone layer and wider diffuser
Unlit neon flex end-face showing the solid silicone housing
8x16mm RGB neon flex cross-section, housing dimensions and 120 degree beam angle
48V RGB neon flex cutting diagram: 100mm (10cm) cut intervals, 15m maximum single-feed run and four-core PWM RGB connection
Horizontal bending direction with a 120mm minimum bending diameter; do not twist or bend vertically
Blue RGB neon flex recessed beneath outdoor sandstone steps in a UK cottage garden
Soft pale-yellow RGB mixed light beneath every stepped driveway wall coping
Green RGB neon flex curving horizontally beneath a garden planter coping and shining down
Blue RGB neon flex recessed beneath the roof beams of a covered UK patio
Purple RGB neon flex recessed beneath a roofed cedar garden seating structure
Icy blue-white RGB mixed light recessed underneath an outdoor timber bench

RGB Neon Flex 8x16mm 48V IP67 – Horizontal Bend

SKU: NF48-0816-RGB
  • RGB Colour Changing
  • Horizontal Bend
  • IP67 Protection
  • 4 Year Warranty
£39.85 inc. VAT
In stock
Cut to nearest cut point.

Quantity
Technical sales support Call 01952 370085 for compatibility and sizing advice.
Matched system advice We can help match the light, driver, control and installation accessories.

Colour-changing light for outdoor details

Give garden steps, decking edges and covered seating areas a smooth line of colour with House of LEDs 8x16mm RGB neon flex. Its silicone diffuser produces a continuous illuminated surface, while the horizontal bend follows curves and shaped architectural details.

Choose red, green, blue or mixed colours with a compatible PWM RGB controller. This 48V model is available in 1–15 Metre lengths, with a maximum 15 Metre run from one power feed. Use a matching 48V constant-voltage LED driver and allow suitable power capacity for the complete installation.

Plan a clean installation

Support the flex with matching clips or an aluminium mounting profile. Follow the 100mm cutting interval and keep bends above the 60mm minimum radius. Correctly seal cut ends and connections to maintain IP67 protection. Controllers and electrical connections should be housed appropriately for their location.

A 20cm four-core cable is included. Optional 1–5 Metre cable lengths can be selected to reach your connection point. The flex carries a four-year warranty.

Made to measure for your project

These RGB neon flex lights are custom made to each customer’s specific project requirements, with cut lengths and cable options prepared to order within the permitted cut points and maximum run length. Enter your required length using the Made to Measure option, or send House of LEDs your project measurements.

Outdoor RGB lighting ideas

Blue RGB neon flex recessed beneath outdoor sandstone steps in a UK cottage garden
Recessed blue RGB lighting beneath garden step nosings.
Purple RGB neon flex recessed beneath a roofed cedar garden seating structure
Purple RGB lighting beneath a covered garden seating area.

Illustrative installations showing selectable RGB colours.

This is standard RGB colour-changing neon flex, not digital or addressable pixel neon flex. The whole run displays one selected colour at a time. The main image shows multiple colours together to illustrate the available RGB colours; it does not show simultaneous multicolour operation. Icy cool white is created by mixing RGB and has a blue tint; there is no dedicated white LED channel.
Brand
House of LEDs
Product type
LED Neon Flex
Colour
RGB
IP rating
IP67
LEDs per metre
120
Continuous run
15 Metre (single feed)
Voltage
48V DC
Watts per metre
10.6 W/m
Reel length
1–15 Metre
Dimensions
8x16mm
Width
8mm
Bend direction
Horizontal Bend
Lumens per metre
152.15 lm/m (RGB mix)
Cut interval
100mm
LED type
SMD5050
Minimum bend radius
60mm
Material
Silicone
Warranty
4 Years
Attachment / mounting
Clips / aluminium profile
Beam angle
120°
Input
4-core RGB
Model
NF48-0816-RGB
Control protocol
PWM RGB, non-addressable
Cable length
20cm included; 1–5 Metre optional
