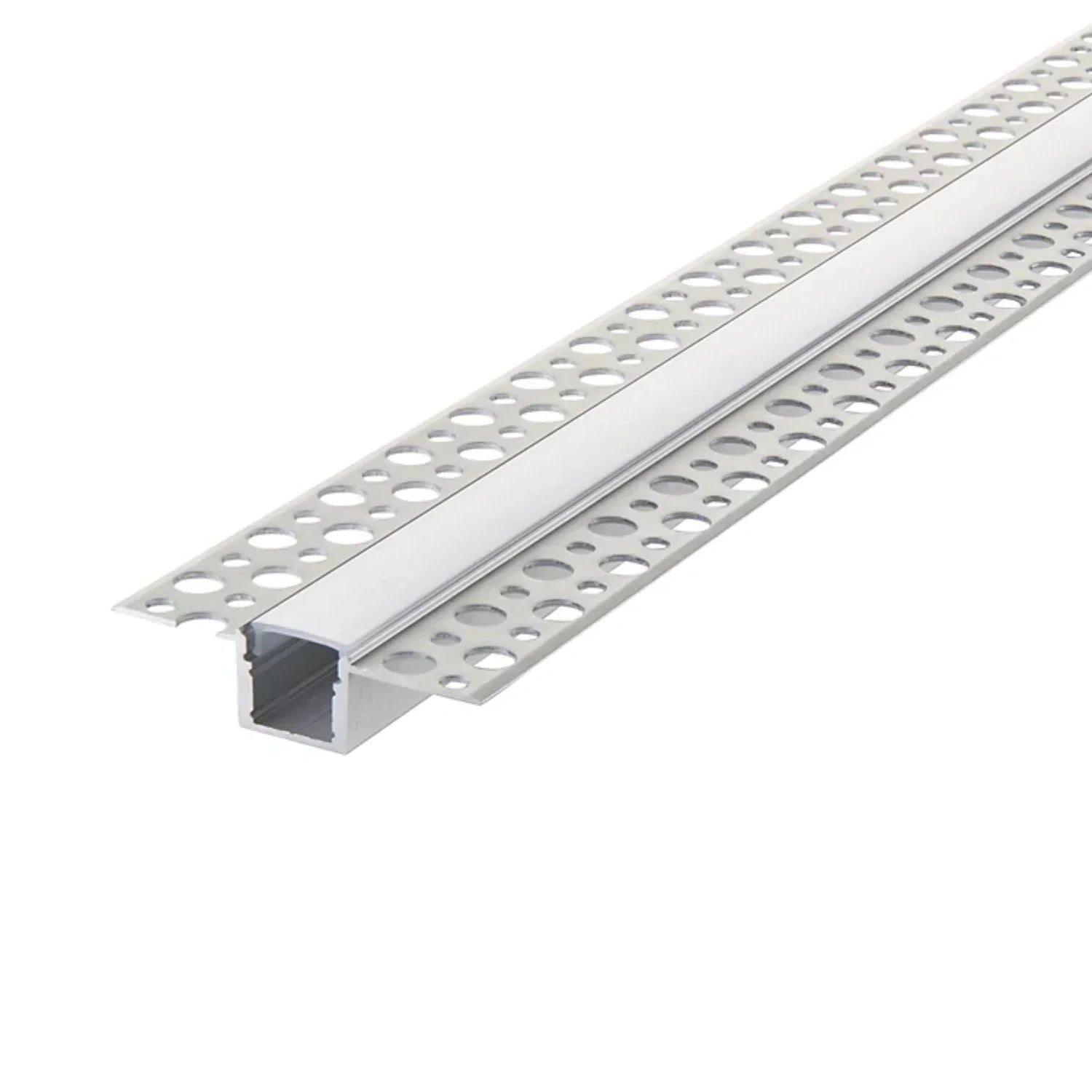

1 Metre Straight Plaster-in Aluminium LED Profile 60.3x15mm, Opal Cover

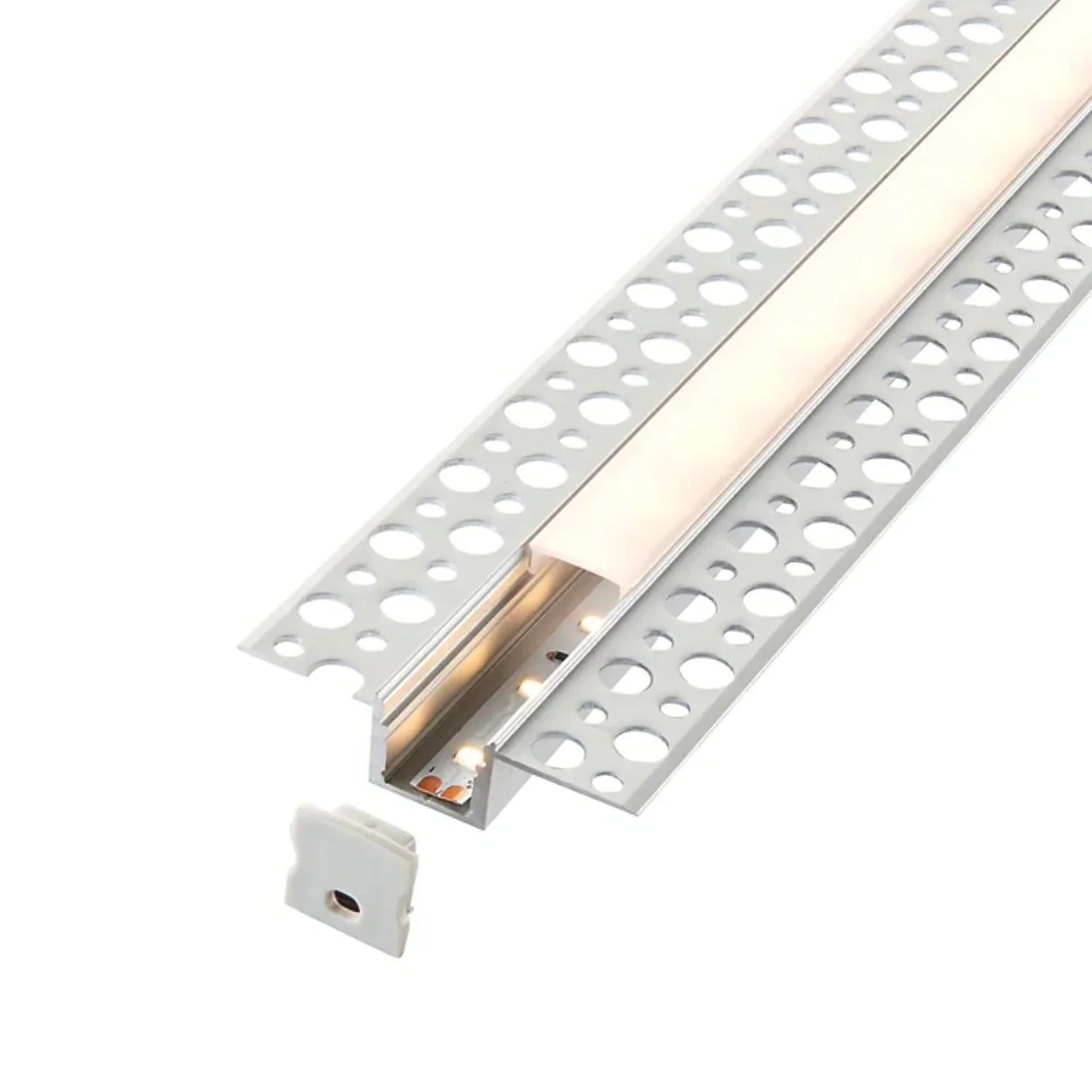

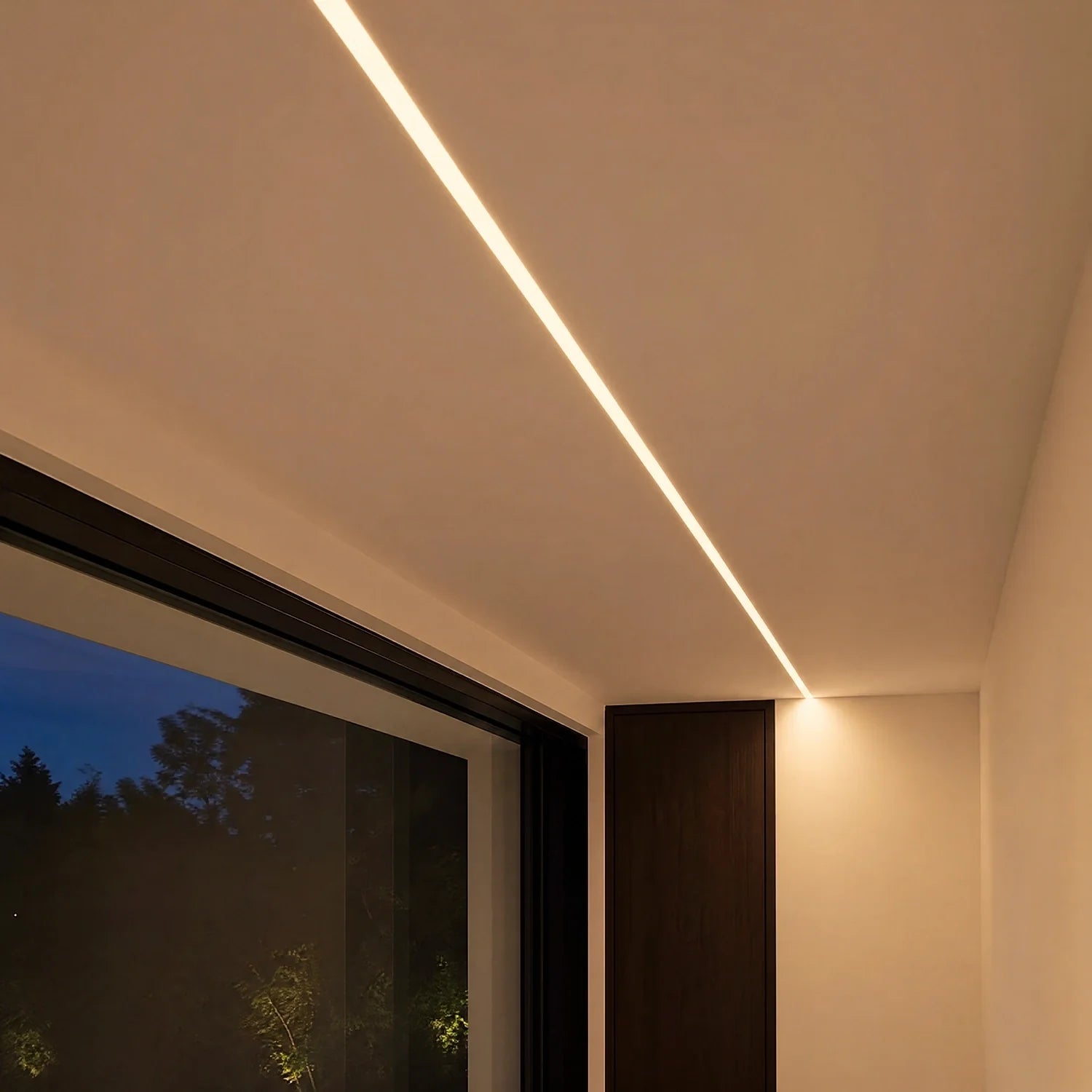

Create a recessed linear-light detail with this 1-metre aluminium profile. Its plaster-in flanges are concealed during finishing, leaving the opal-covered light opening visible in the completed wall or ceiling.

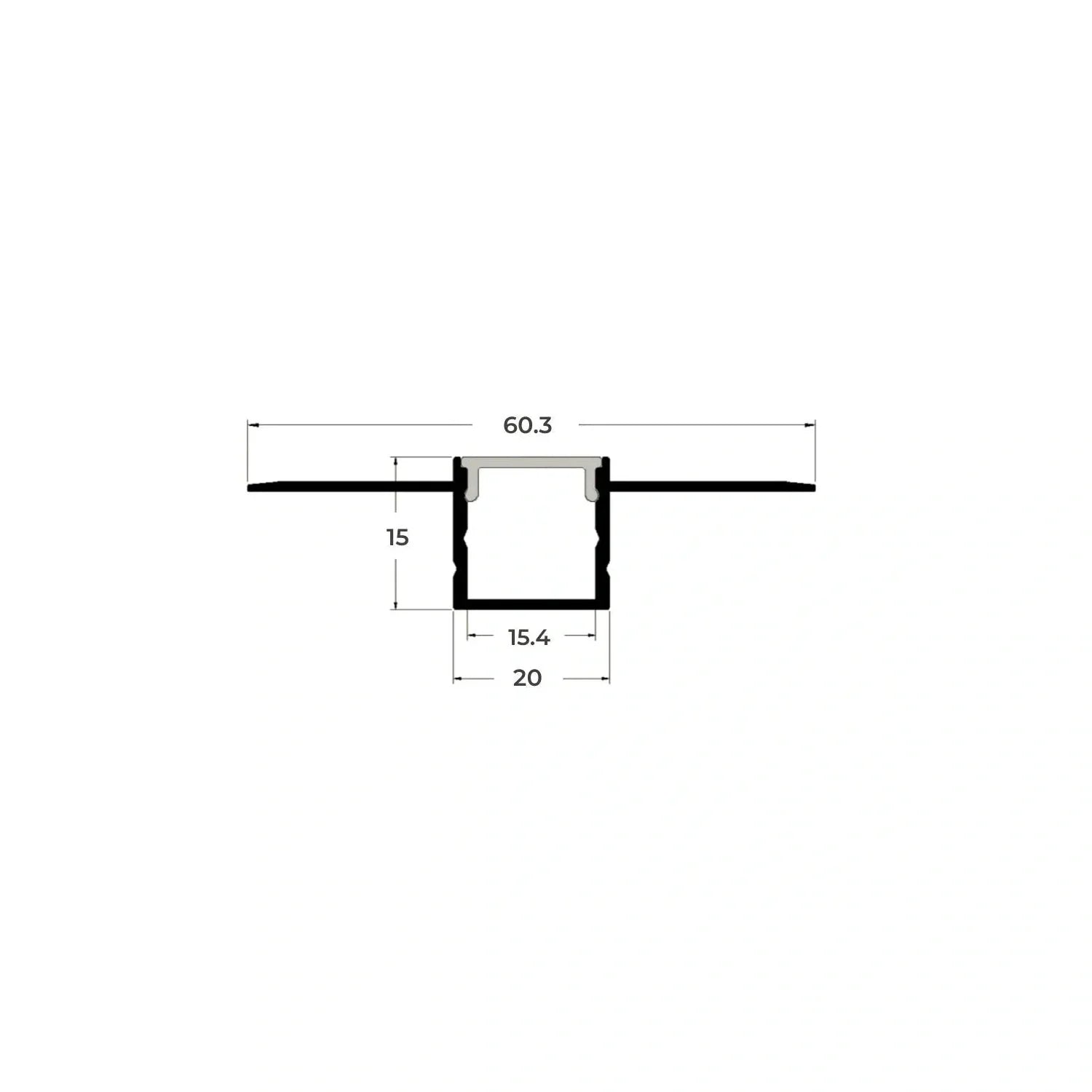

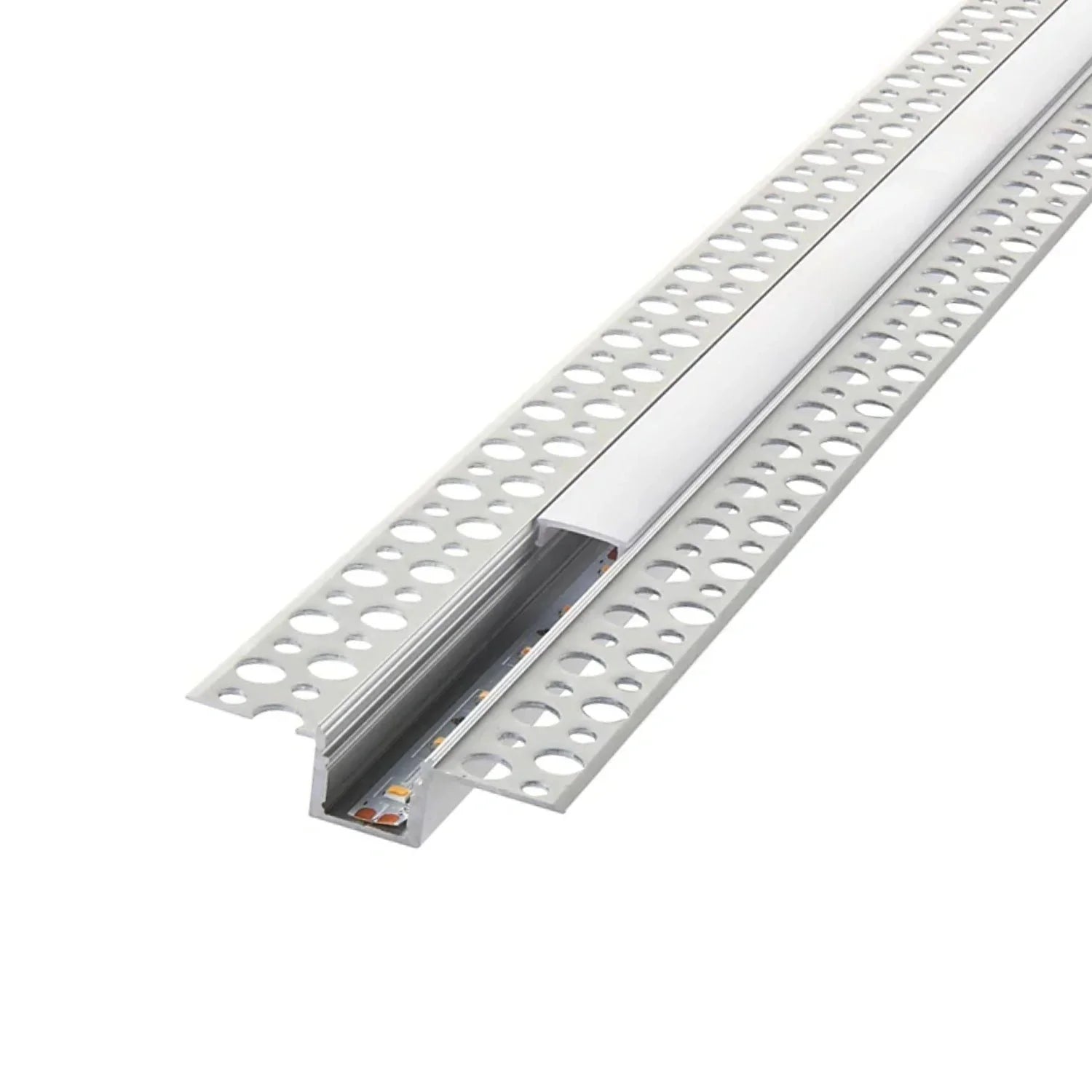

The 60.3 × 15mm section is made for straight runs. Its channel accepts LED tape up to 15mm wide; check the width of any connectors as well as the strip. The wider internal channel provides room for tape that will not fit a narrow extrusion.
Technical details
| Light colour / finish | Silver |
|---|---|
| Strip / profile width | 60.3mm |
| Physical dimensions | 1000 × 60.3 × 15mm (L × W × H) |
| Ingress rating | IP20 |
| Construction material | Aluminium, opal silicone diffuser |
| Profile shape | Rigid straight plaster-in channel |
| Warranty period | 7 years |
| Supplied profile length | 1 metres |
| Internal channel width | 15.4mm |
| Maximum LED-tape width | 15mm |

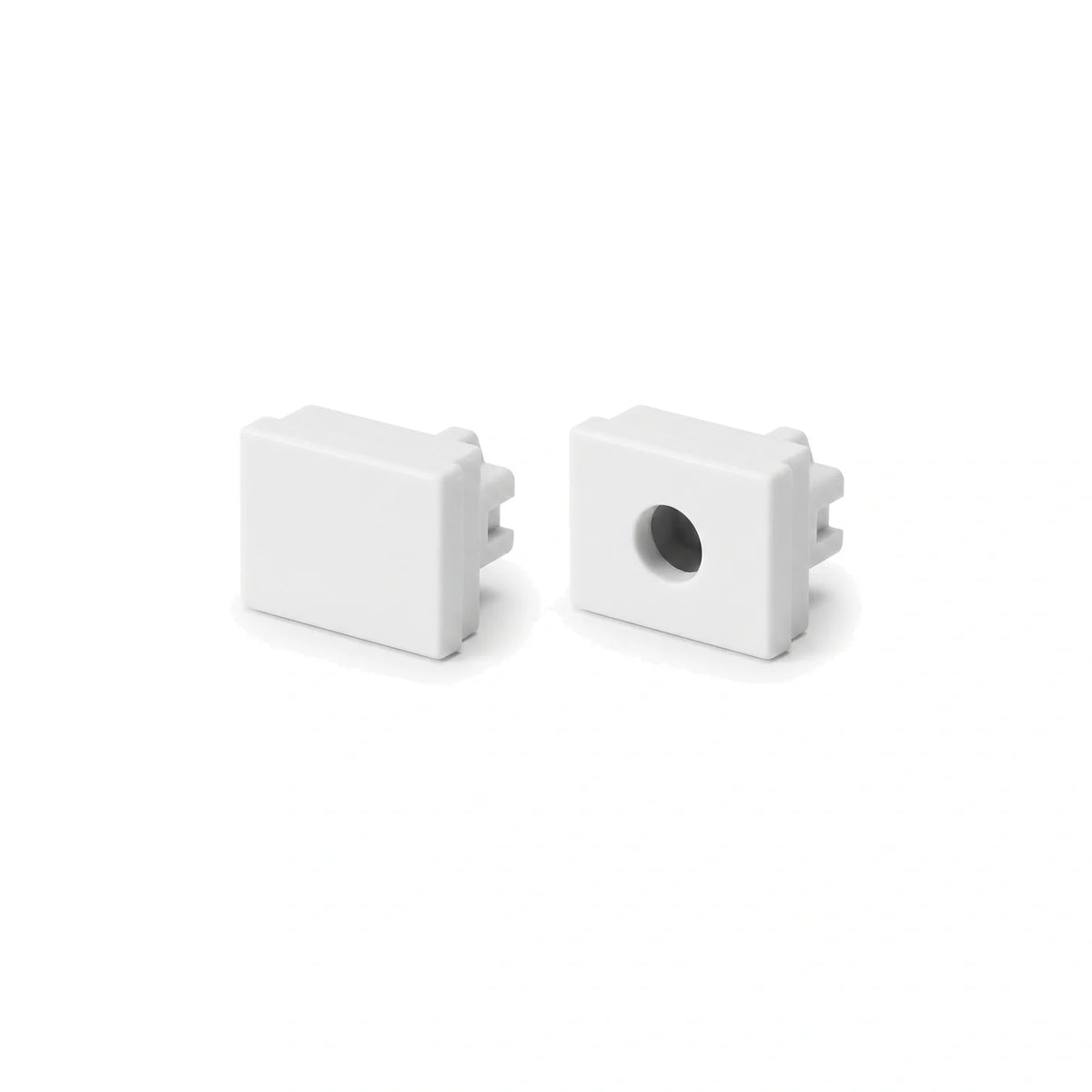

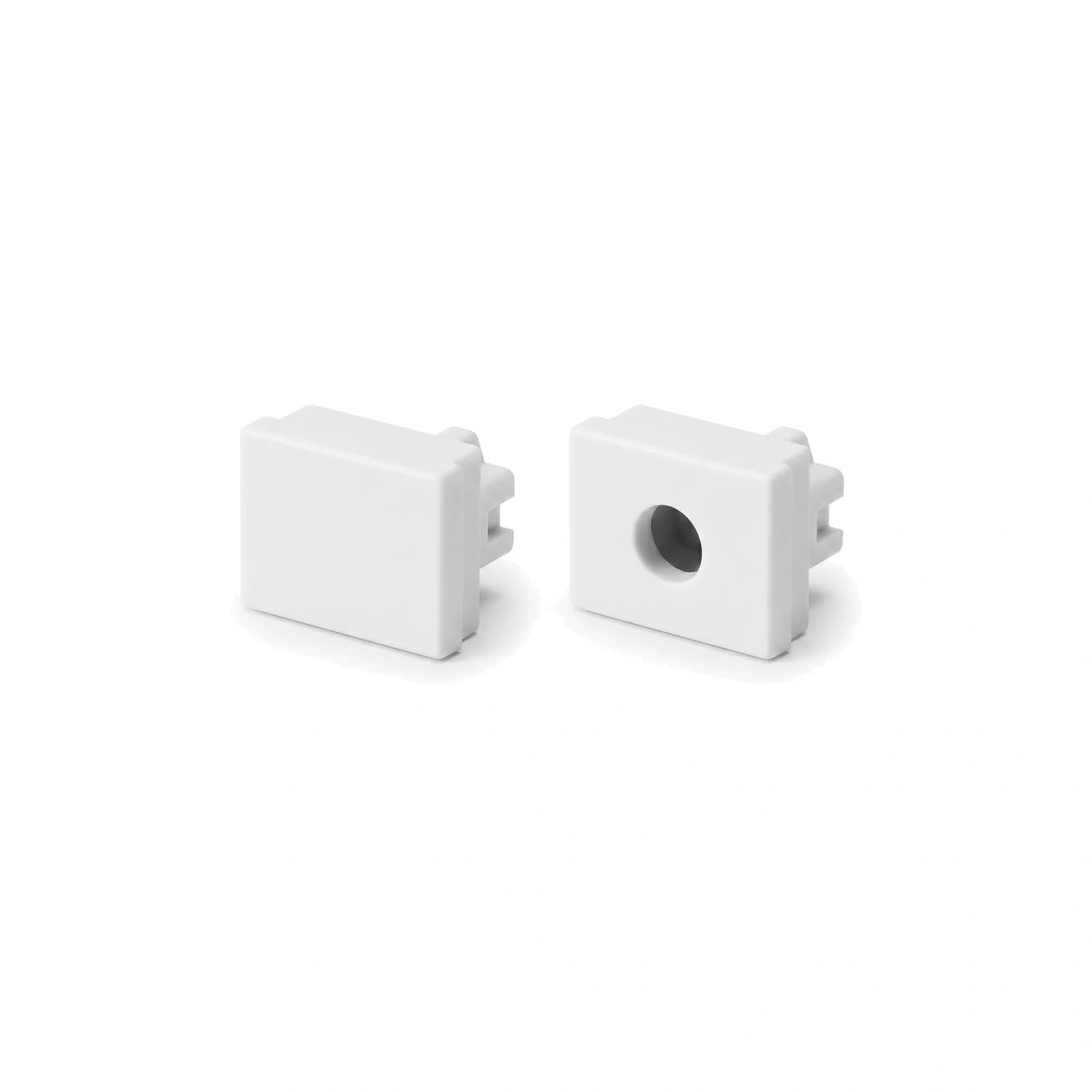

| Included components | Profile, opal cover, front cap and end cap |
| Lighting components | LED strip and power supply are not included |
| Listed profile weight | 300g |
Planning your installation

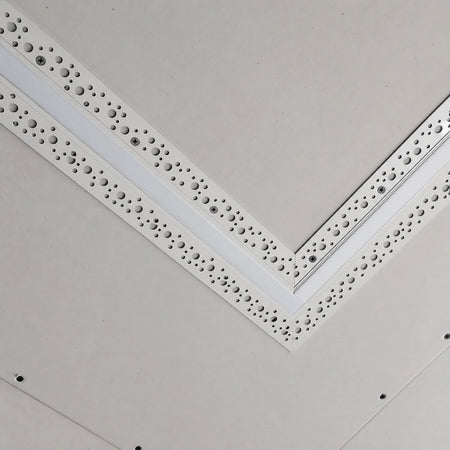

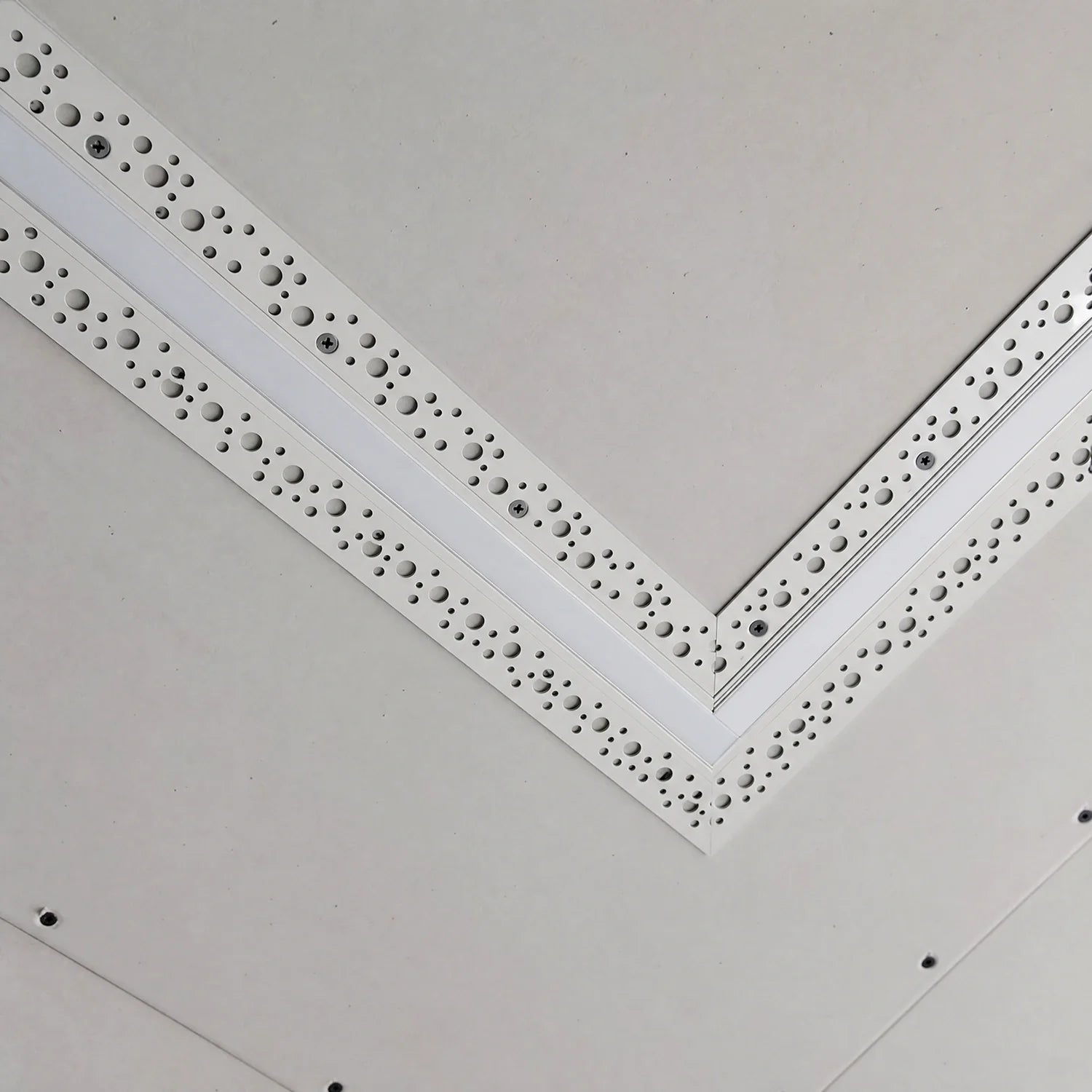

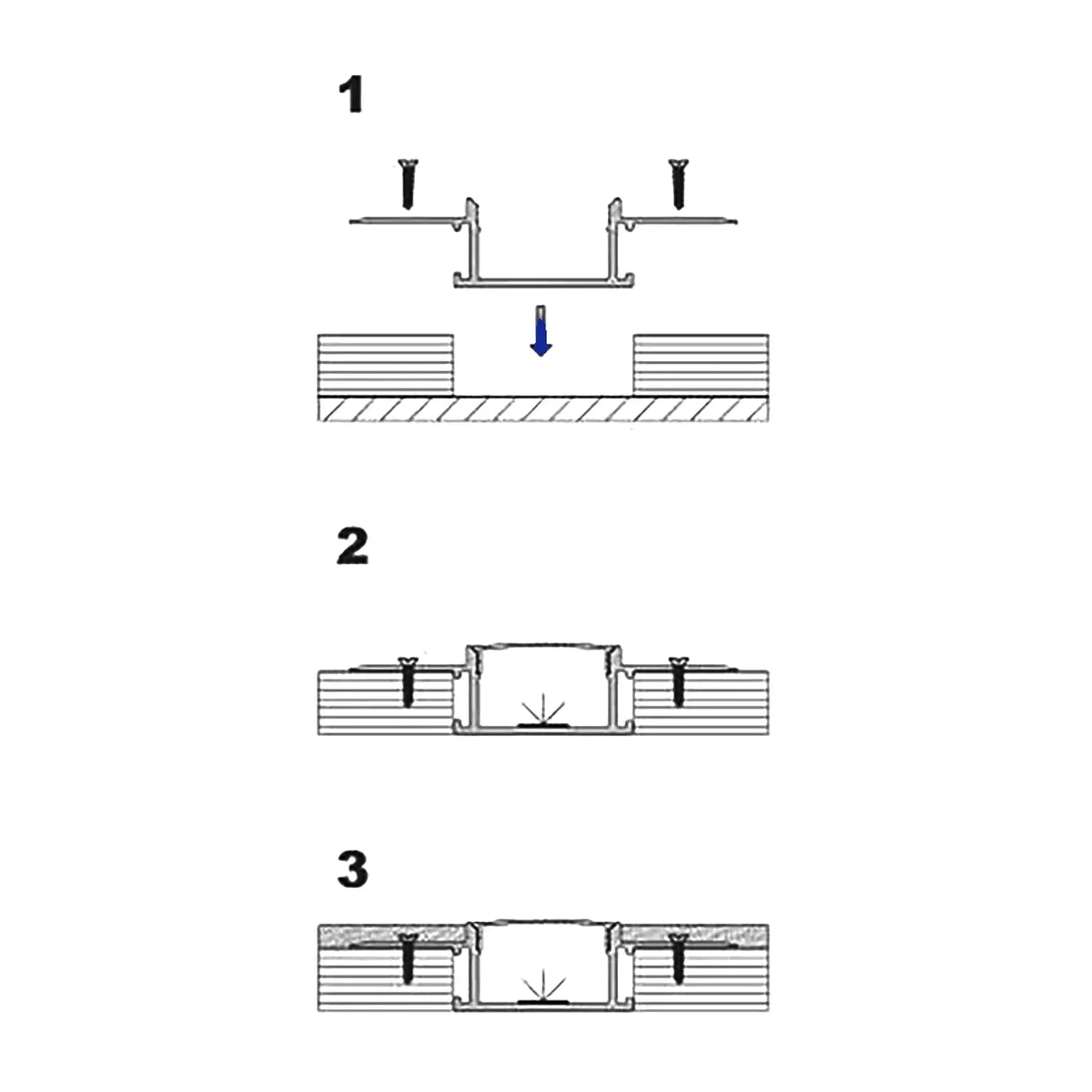

Secure the extrusion before finishing the surrounding plasterboard. Keep plaster away from the diffuser-retaining edges and fit the cover after decorating. COB tape or closely spaced SMD LEDs helps produce an even-looking line behind the opal cover. This rigid, IP20 profile is for dry interiors and must not be forced around a curve.
- Brand
- ATOM LED
- Product type
- Aluminium Profile
- Colour
- Silver
- IP rating
- IP20
- Dimensions
- 1000 × 60.3 × 15mm (L × W × H)
- Width
- 60.3mm
- Shape
- Rigid straight plaster-in channel
- Certification
- UKCA, CE, RoHS
- Material
- Aluminium, opal silicone diffuser
- Warranty
- 7 years
