Straight Tile-In Aluminium Profile for 10×10mm IP67 Neon Flex

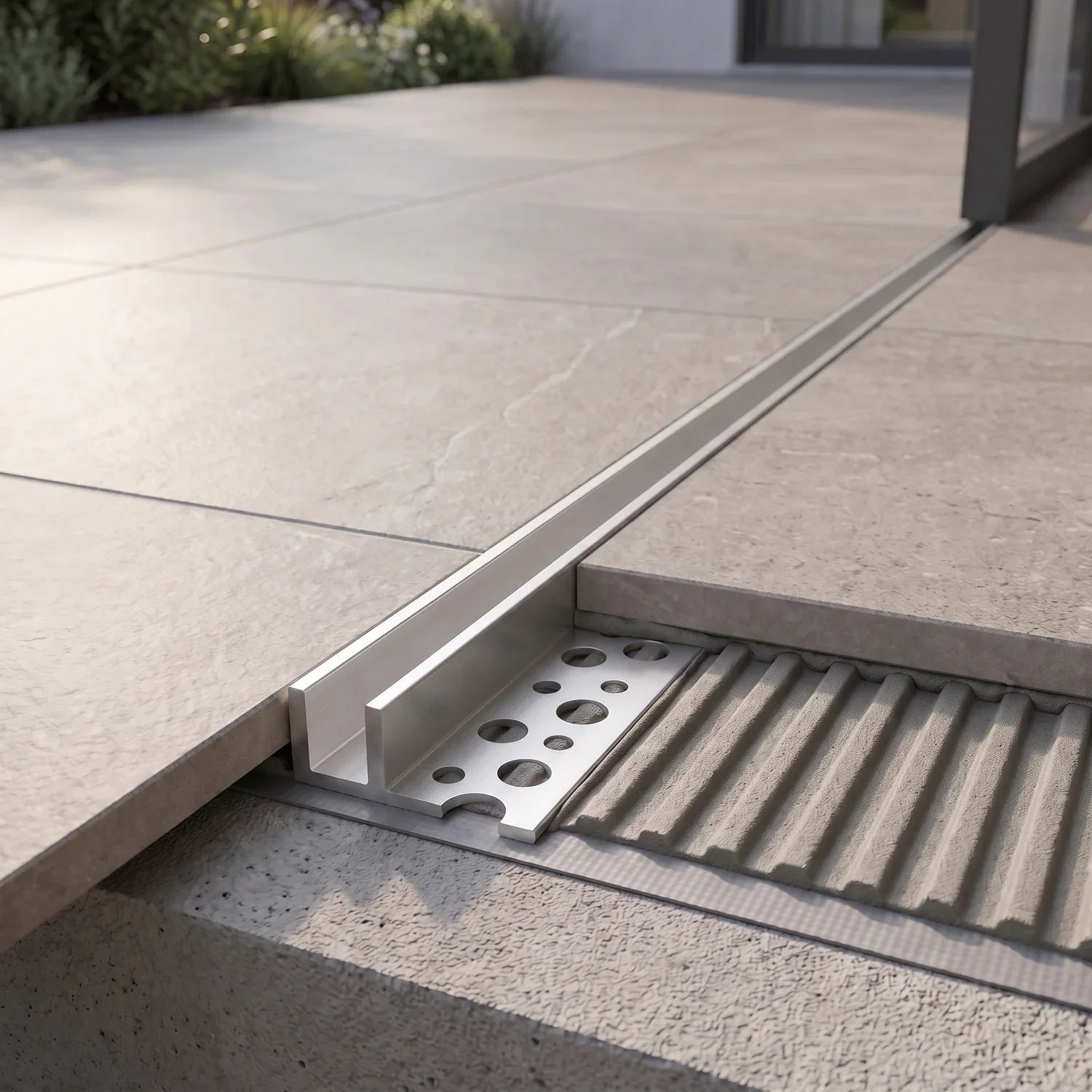

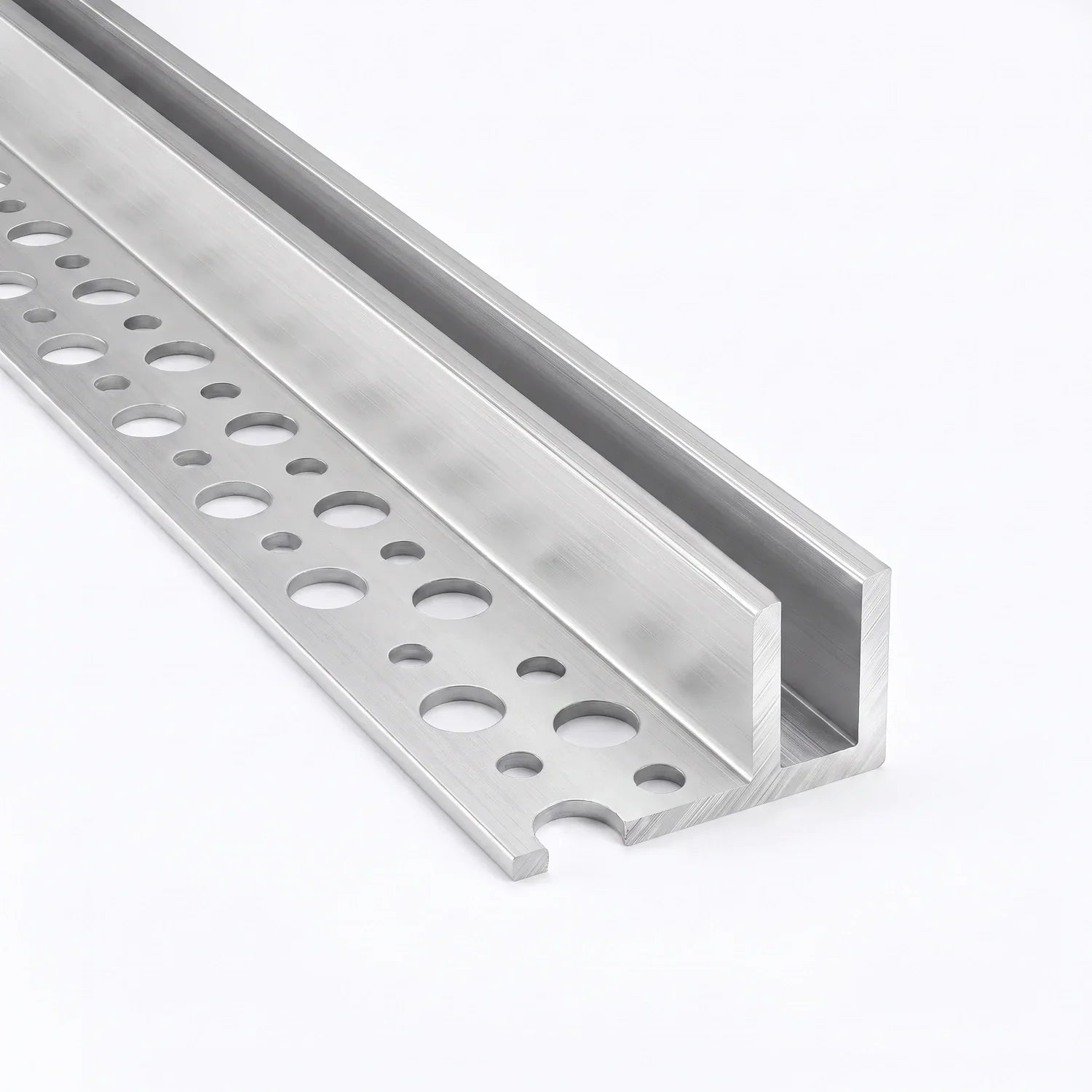

Set a straight 10×10mm Neon Flex line neatly into a tiled wall, floor, step or landscape detail. This rigid aluminium channel uses one perforated flange beneath the finish, helping the recessed opening meet the surrounding surface cleanly.
Plan before the tiles go down

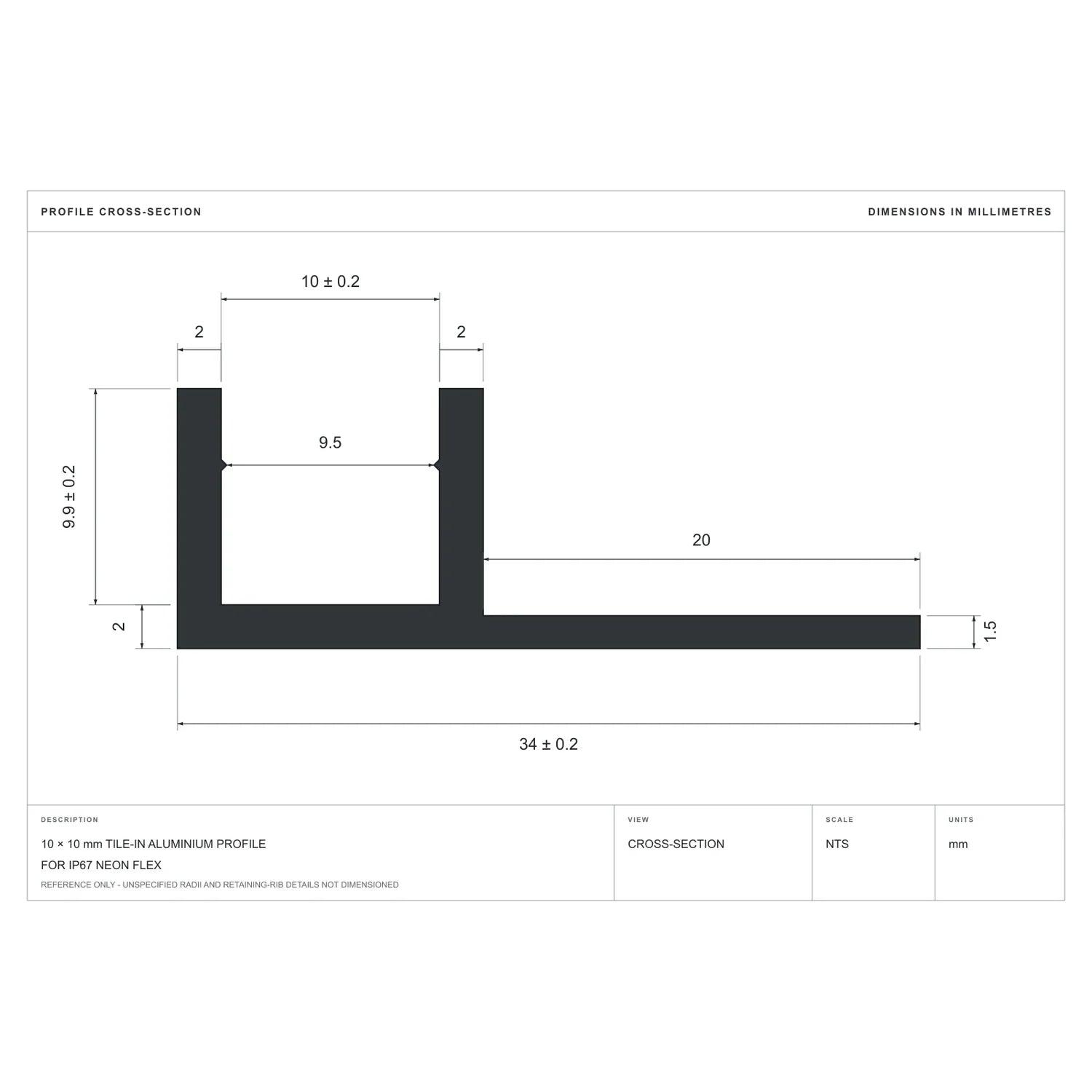

The profile is 34mm wide within a ±0.2mm tolerance. Its nominal 10mm cavity has a 9.5mm clear mouth and 9.9mm internal depth, so confirm the selected IP67 Neon Flex against the cross-section drawing and test a sample first. Matching 24V and 48V ranges are supported.

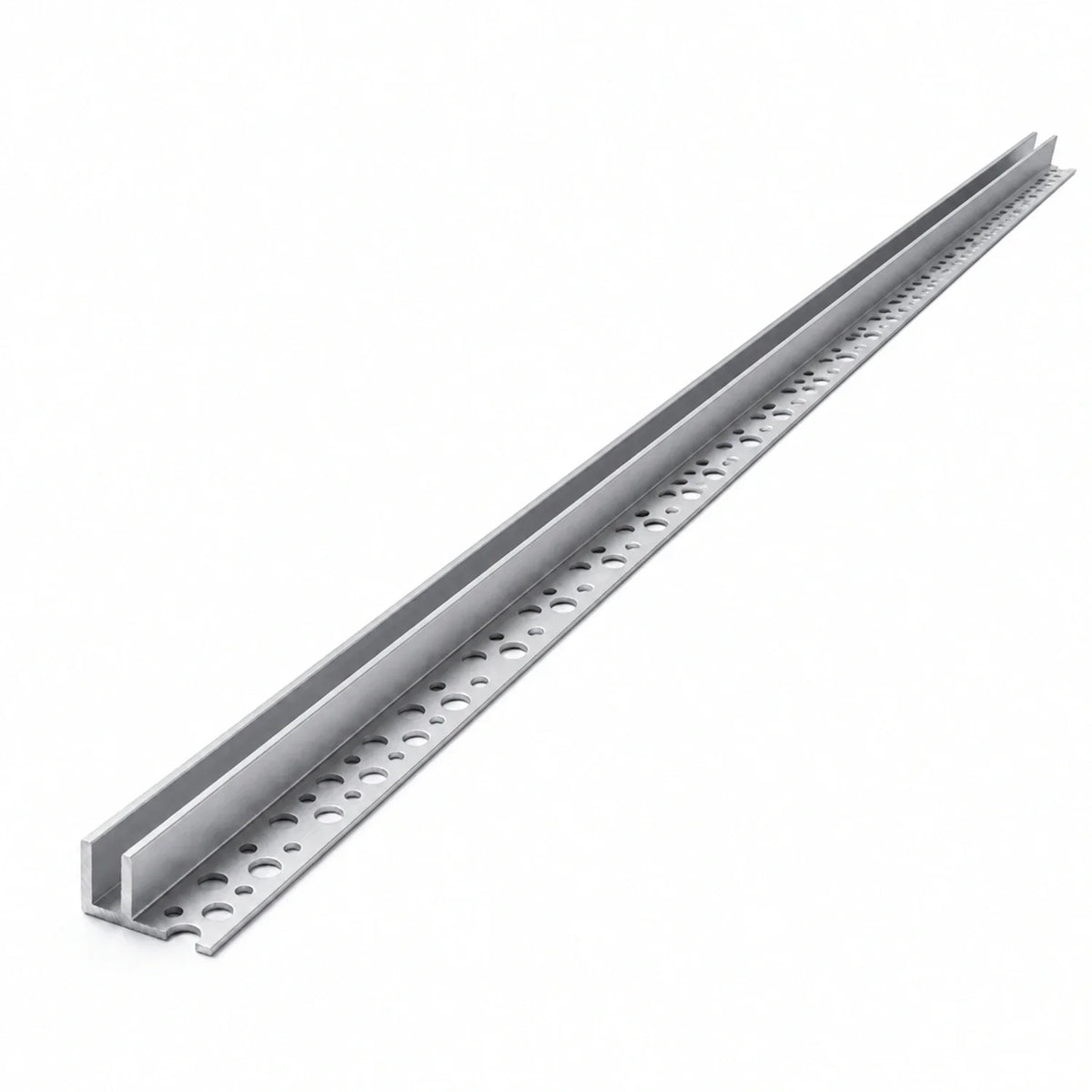

Choose a 1-metre or 2-metre length for straight sections. This profile is rigid even if the light itself can bend. Allow for joints, drainage and access, and do not assume a walk-over rating.
The listing supplies the aluminium profile only; Neon Flex, diffuser, fixings and electrical equipment are separate. IP67 does not apply to the bare channel. Warranty: 7 years.
- Brand
- ATOM LED
- Product type
- Aluminium Profile
- Reel length
- 1 Metre / 2 Metres
- Dimensions
- 34 ± 0.2 mm overall width; 9.9 ± 0.2 mm internal channel depth
- Width
- 34 ± 0.2 mm
- Shape
- Straight asymmetric tile-in channel
- Material
- Aluminium
- Warranty
- 7 Years
- Attachment / mounting
- Tile-in / recessed beneath tiled finish
Mainland UK delivery
- Tracked delivery, including 1m profiles: £6.85 for eligible orders under £90.
- Free tracked delivery: eligible standard parcels and 1m-profile orders of £90 or more.
- DPD Next Working Day: £9.85
- Next Working Day by 12pm: £15.95
- Next Working Day by 10:30am: £18.95
- Saturday delivery: £19.85
- 2m profiles / long goods: £21.85 per consignment. This applies whenever an order contains any 2m profile: one 2m length, a 2m length mixed with 1m items, or multiple 2m lengths. The charge remains £21.85 and is not replaced by the free-delivery threshold.
Orders placed before 1pm Monday to Friday are normally despatched the same working day when stock is available and no additional cutting or preparation time is required. Timed services exclude weekends and Bank Holidays unless Saturday delivery is selected. International orders use a tracked service; the available rate is calculated at checkout.
Returns
Unused standard stock items may be returned within 15 days in their original, undamaged condition and packaging. Contact us before sending a return so the correct return route can be confirmed.
Made-to-measure, cut, mixed or otherwise personalised products cannot be cancelled or returned once preparation has started unless they are faulty. Full unused rolls and unused accessories, power supplies, controllers, drivers and profiles may be eligible for return. Modifying a product can invalidate its warranty, including removing the fitted plug from 220V/240V strip or neon flex.
Read the full shipping policy and refund policy, or contact sales@houseofleds.co.uk before ordering a made-to-measure item.
