Tile-In Aluminium Profile 6×12mm IP67 Neon Flex 1 metre & 2 Metre
Create a neat, flush line of light in tiled floors or walls with this straight tile-in aluminium profile for 6 × 12 mm IP67 Neon Flex. Choose 1 Metre or 2 Metre.

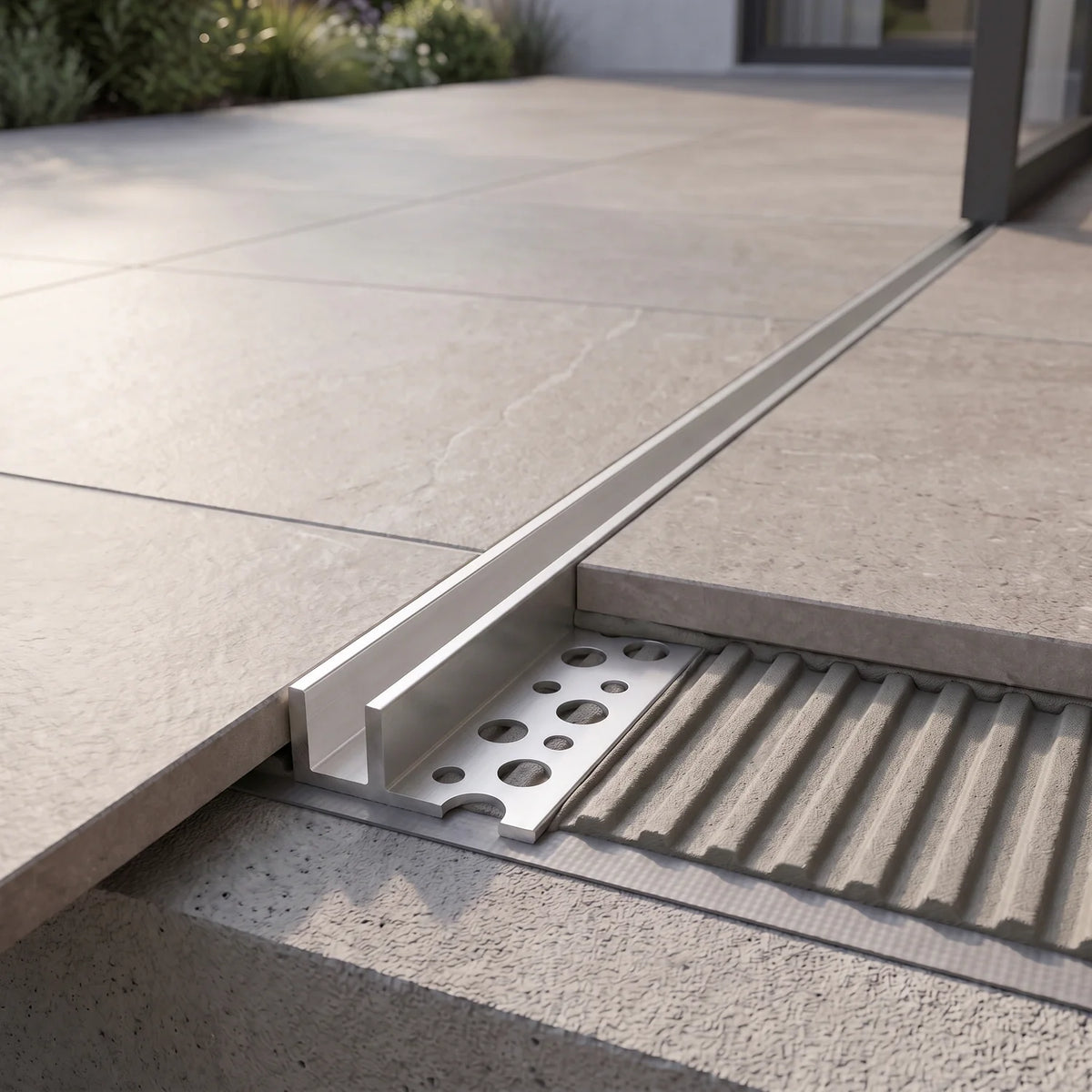

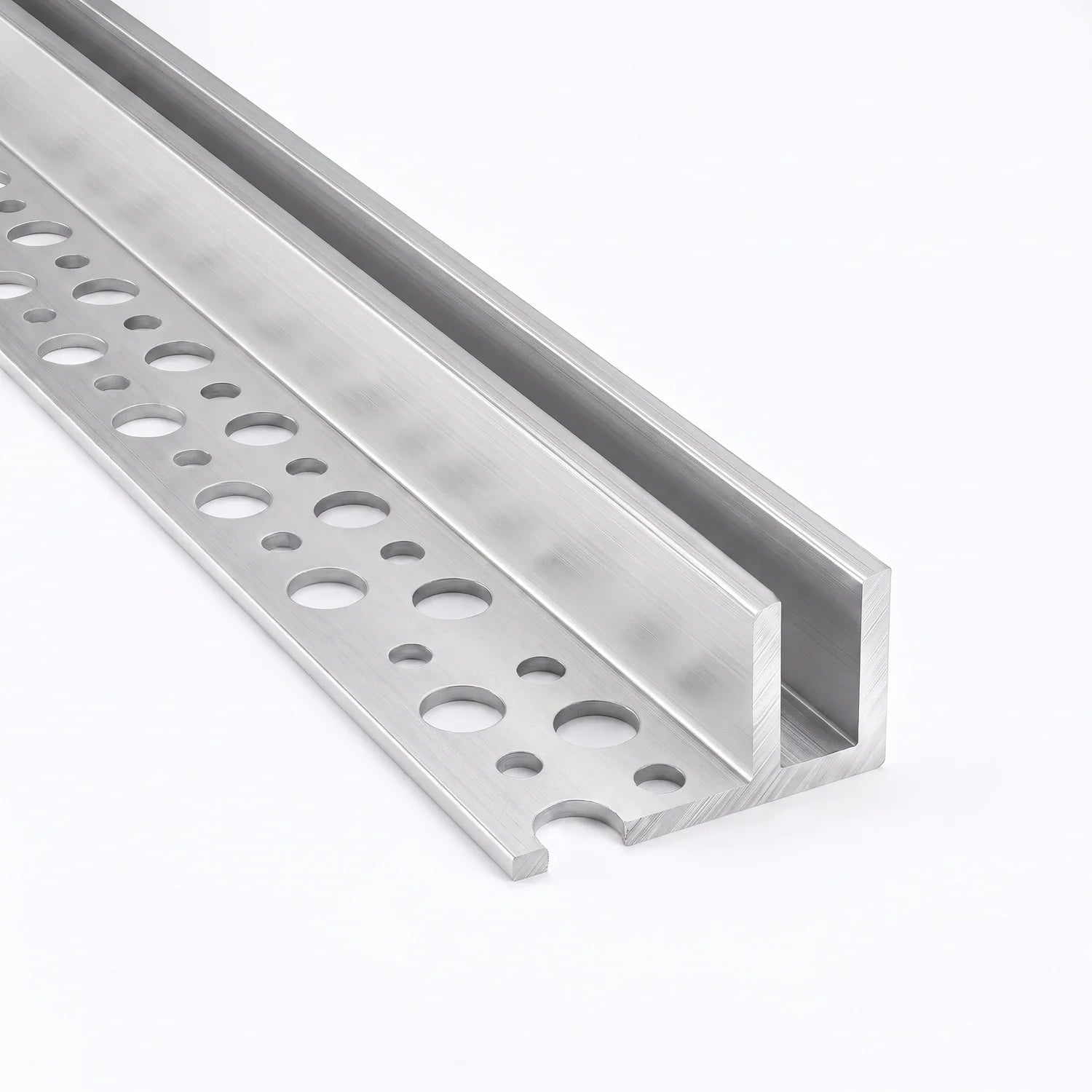

The asymmetric perforated flange beds beneath the tiled or paved finish, allowing suitable adhesive or bedding material to key around the aluminium while the channel remains aligned with the finished surface.
Key features
- Selected for House of LEDs 6 × 12 mm IP67 Neon Flex
- Compatible with the linked 24V and 48V Neon Flex ranges
- Straight, rigid aluminium channel with one perforated tile-in flange
- Available in 1 Metre and 2 Metre lengths
- 7-year warranty
Applications
Suitable for recessed linear-lighting details in tiled floors and walls where the complete lighting system, substrate and installation method are appropriate for the location. For specification help, contact the House of LEDs technical team or tell us about a bespoke lighting project.
Compatible 6 × 12 mm IP67 Neon Flex
- 24V Neon Flex - 1 cm cut points, up to 15 m
- 24V Neon Flex - 5 cm cut points, up to 20 m
- 48V Neon Flex - 10 cm cut points, up to 40 m
Profile only: Neon Flex, fixings and accessories are not included. Browse the complete LED Neon Flex Channels & Tracks range.
Before ordering
This profile is matched to the linked House of LEDs ranges. Products described as 6 × 12 mm can vary between manufacturers, so check compatibility before using another Neon Flex. This is a straight profile and is not bendable.
IP67 refers to the compatible Neon Flex, not the bare aluminium profile or completed installation. Select suitable sealing, drainage, fixings and substrate preparation for the environment.
Delivery charges depend on the selected profile length and delivery address. The applicable rate is shown at checkout.
- Brand
- ATOM LED
- Product type
- Aluminium Profile
- Colour
- Silver
- IP rating
- Compatible with IP67 Neon Flex
- Reel length
- 1 Metre / 2 Metres

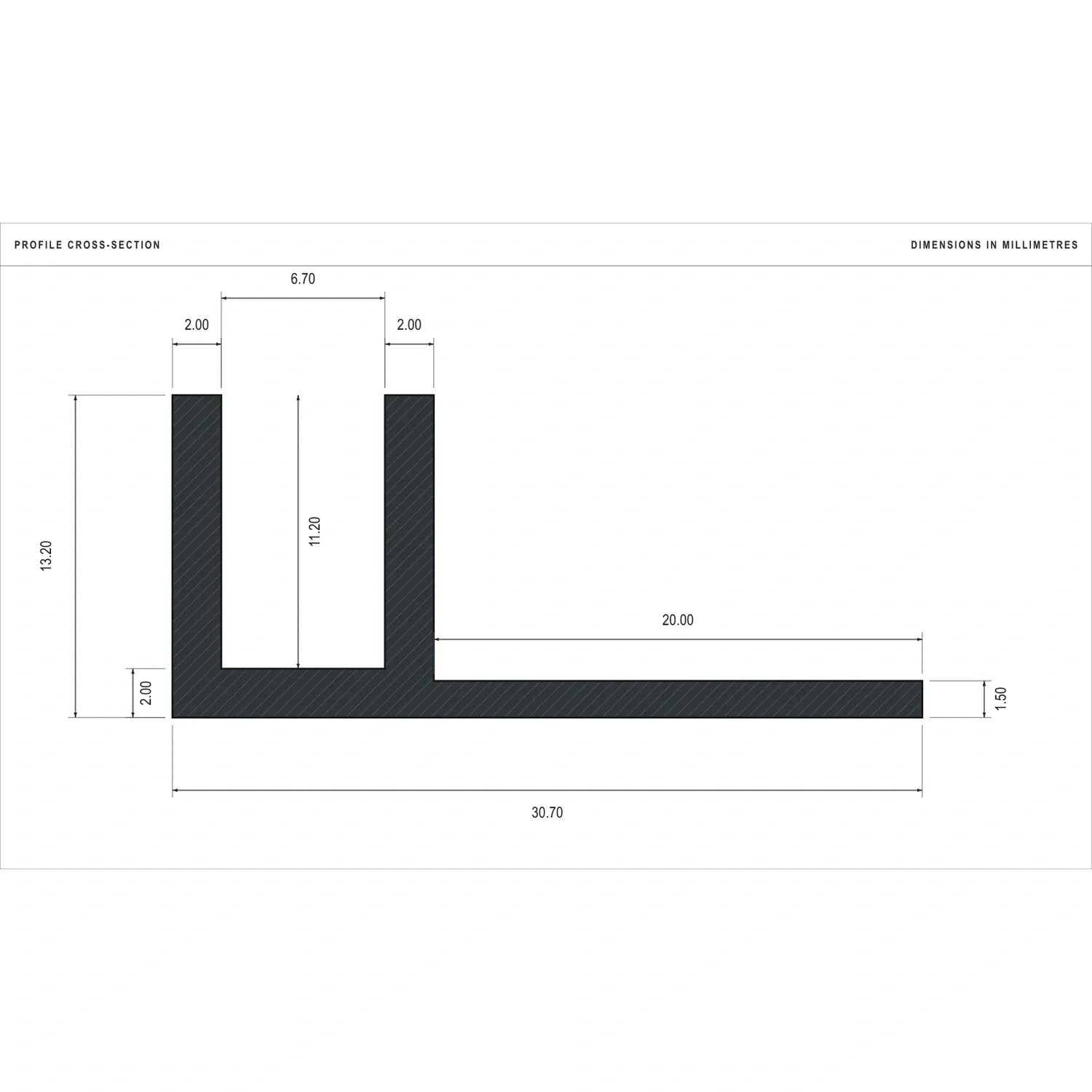

- Dimensions
- 30.70 mm wide × 13.20 mm high
- Width
- 30.70 mm
- Depth
- 13.20 mm
- Shape
- Straight asymmetric tile-in channel
- Material
- Aluminium
- Warranty
- 7 Years
- Attachment / mounting
- Tile-in / recessed beneath tiled finish
